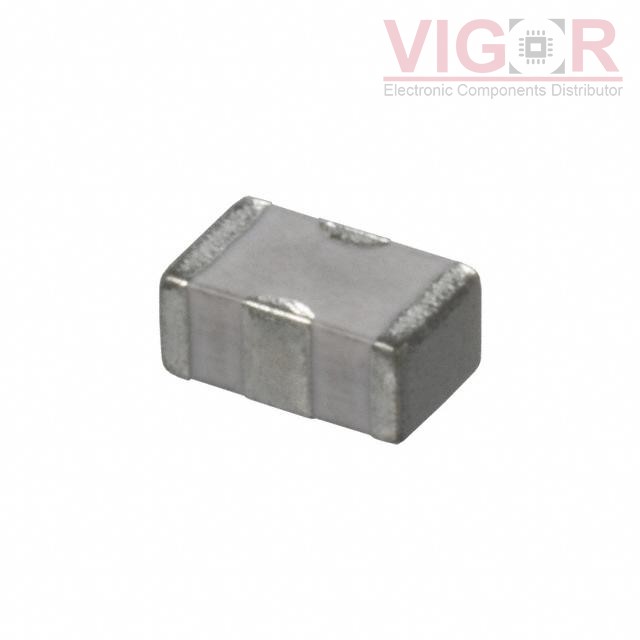

NFL21SP206X1C7D

Part No :: NFL21SP206X1C7D

Manufacturer: TOKO / Murata

VIGOR # :: 4026574

Description: FILTER LC(PI) 700NH/240PF SMD

Catalog: EMI/RFI Filters (LC, RC Networks)

DataSheet: NFL21SP206X1C7D PDF

Country of origin: -

Date code: -

NFL21SP206X1C7D Specifications

Type	Description
Series:	EMIFIL®, NFL21
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Low Pass
Filter Order:	3rd
Technology:	LC (Pi)
Number of Channels:	1
Center / Cutoff Frequency:	20MHz (Cutoff)
Attenuation Value:	-
Resistance - Channel (Ohms):	-
Current:	100 mA
Values:	L = 700nH, C = 240pF
ESD Protection:	No
Operating Temperature:	-55°C ~ 125°C
Applications:	General Purpose
Voltage - Rated:	16V
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric), 3 PC Pad
Size / Dimension:	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height:	0.037" (0.95mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 37546

Shipped from

HK warehouse

Expected Shipping Date

Feb 01 - Feb 05 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.37~~	~~$0.37~~
4000	~~$0.18~~	~~$718.08~~
8000	~~$0.17~~	~~$1 351.68~~
12000	~~$0.16~~	~~$1 900.80~~
28000	~~$0.15~~	~~$4 139.52~~

Current price of NFL21SP206X1C7D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
