EMIF04-EAR02M8

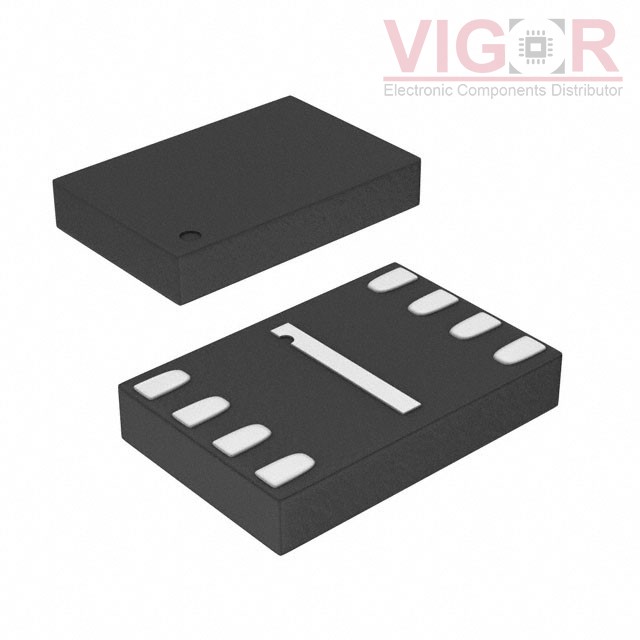

Image is for reference,
please contact us to get the real picture

Part No :: EMIF04-EAR02M8

Manufacturer: STMicroelectronics

Description: FILTER LC(PI)/RC(PI) ESD SMD

Catalog: EMI/RFI Filters (LC, RC Networks)

Shipped from: HK warehouse

Expected Shipping Date: Oct 12 - Oct 16 2025

DataSheet: EMIF04-EAR02M8 PDF

Availability: 2811 pieces

Unit Price: ~~$0.46000~~

Current price of EMIF04-EAR02M8 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EMIF04-EAR02M8 Specifications

Type	Description
Series:	EMIF
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Low Pass
Filter Order:	2nd, 3rd
Technology:	LC (Pi), RC (Pi)
Number of Channels:	4
Center / Cutoff Frequency:	60MHz, 70MHz (Cutoff)
Attenuation Value:	-30dB @ 900MHz
Resistance - Channel (Ohms):	-
Current:	50 mA
Values:	R = 68Ohms, C = 76pF, 105pF, L = 1.5nH
ESD Protection:	Yes
Operating Temperature:	-30°C ~ 125°C
Applications:	Audio
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	8-UFDFN Exposed Pad
Size / Dimension:	0.067" L x 0.059" W (1.70mm x 1.50mm)
Height:	0.026" (0.65mm)

Please confirm the specifications of the products when ordering.
