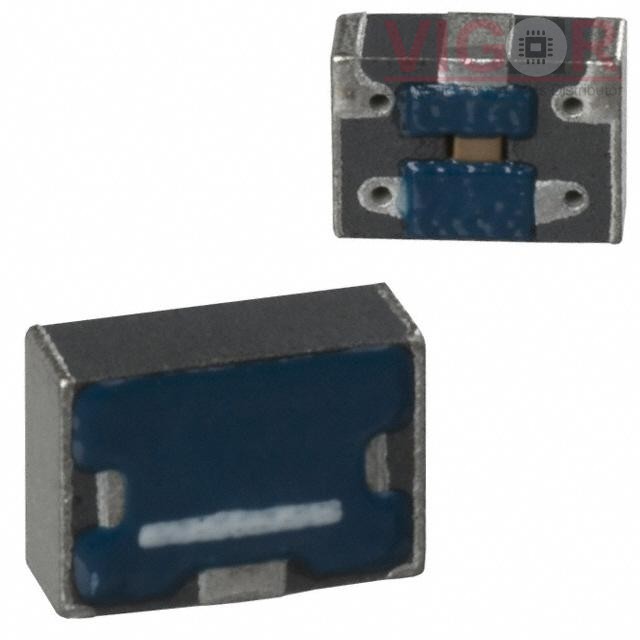

ACH4518-680-TD01

Image is for reference,
please contact us to get the real picture

Part No :

ACH4518-680-TD01

Manufacturer
TDK Corporation
Description
FILTER LC(T) SMD
Catalog
EMI/RFI Filters (LC, RC Networks)
Shipped from
HK warehouse
Expected Shipping Date
Oct 13 - Oct 17 2025
DataSheet
ACH4518-680-TD01 PDF
Availability
3353 pieces
Unit Price
$0.52000

Current price of ACH4518-680-TD01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:ACH
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Not For New Designs
Type:Low Pass
Filter Order:3rd
Technology:LC (T-Type)
Number of Channels:1
Center / Cutoff Frequency:-
Attenuation Value:25dB @ 290MHz ~ 395MHz
Resistance - Channel (Ohms):0.06
Current:2 A
Values:-
ESD Protection:No
Operating Temperature:-40°C ~ 125°C
Applications:General Purpose
Voltage - Rated:50V
Mounting Type:Surface Mount
Package / Case:1812 (4532 Metric), 3 PC Pad
Size / Dimension:0.071" L x 0.177" W (1.80mm x 4.50mm)
Height:0.138" (3.50mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

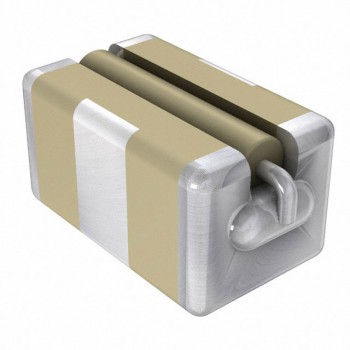

HOT SBSGP0500224MXT

SBSGP0500224MXT

FILTER LC(PI) 0.22UF SMD

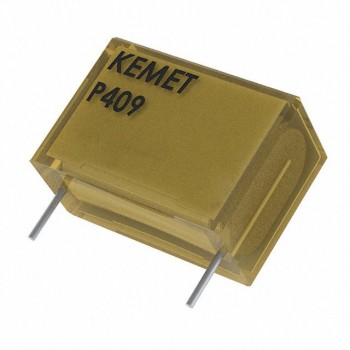

HOT P409CP224M275AH470

P409CP224M275AH470

FILTER RC 47 OHM/0.22UF TH

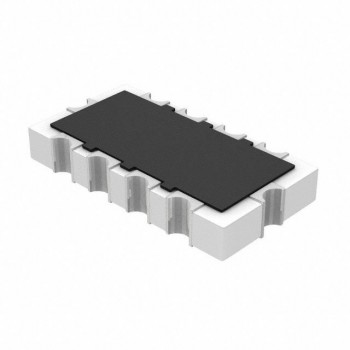

HOT EZA-ST51AAAJ
