NFL21SP506X1C3D

NFL21SP506X1C3D

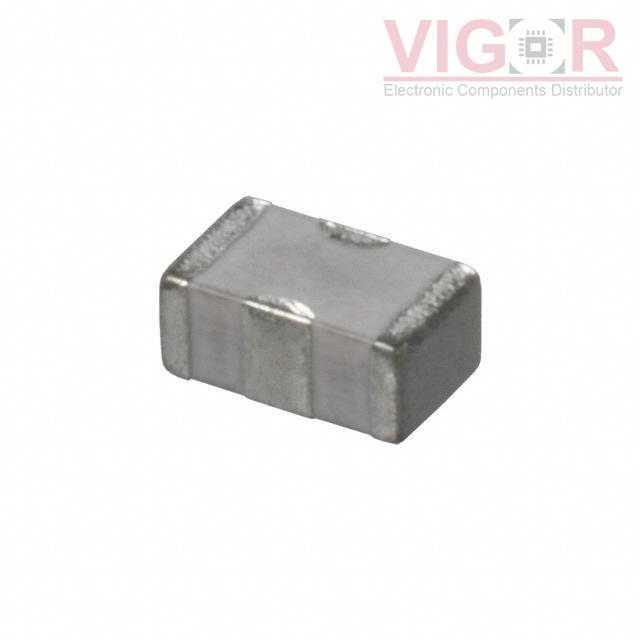

Image is for reference,
please contact us to get the real picture

Part No :

NFL21SP506X1C3D

Manufacturer
TOKO / Murata
Description
FILTER LC(PI) 305NH/84PF SMD
Catalog
EMI/RFI Filters (LC, RC Networks)
Shipped from
HK warehouse
Expected Shipping Date
Oct 22 - Oct 26 2025
DataSheet
NFL21SP506X1C3D PDF
Availability
1358 pieces
Unit Price
$0.37000

Current price of NFL21SP506X1C3D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NFL21SP506X1C3D Specifications
Type Description
Series:EMIFIL®, NFL21
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Low Pass
Filter Order:3rd
Technology:LC (Pi)
Number of Channels:1
Center / Cutoff Frequency:50MHz (Cutoff)
Attenuation Value:-
Resistance - Channel (Ohms):-
Current:150 mA
Values:L = 305nH, C = 84pF
ESD Protection:No
Operating Temperature:-55°C ~ 125°C
Applications:General Purpose
Voltage - Rated:16V
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric), 3 PC Pad
Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
Height:0.037" (0.95mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT NUF4210MNT1G

NUF4210MNT1G

DATA LINE FILTER

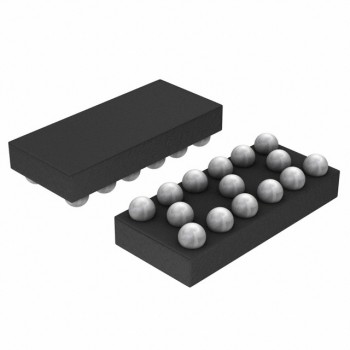

HOT CM1420-03CP
