CM1418-02CP

CM1418-02CP

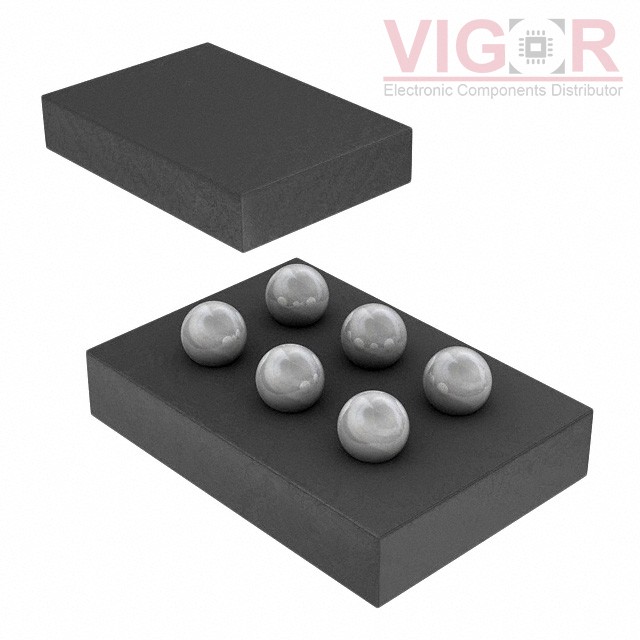

Image is for reference,
please contact us to get the real picture

Part No :

CM1418-02CP

Manufacturer
VIGOR
Description
DATA LINE FILTER, 2 FUNCTION(S)
Catalog
EMI/RFI Filters (LC, RC Networks)
Shipped from
HK warehouse
Expected Shipping Date
Oct 22 - Oct 26 2025
DataSheet
CM1418-02CP PDF
Availability
45500 pieces
Unit Price
$0.20000

Current price of CM1418-02CP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CM1418-02CP Specifications
Type Description
Series:Praetorian™
Package:Bulk
Part Status:Obsolete
Type:Low Pass
Filter Order:3rd
Technology:LC (Pi)
Number of Channels:2
Center / Cutoff Frequency:22MHz (Cutoff)
Attenuation Value:35dB @ 1GHz
Resistance - Channel (Ohms):0.28
Current:500 mA
Values:L = 3nH, C = 117pF
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:6-WFBGA, WLCSP
Size / Dimension:0.067" L x 0.048" W (1.72mm x 1.22mm)
Height:0.028" (0.70mm)
