CSPEMI202AG

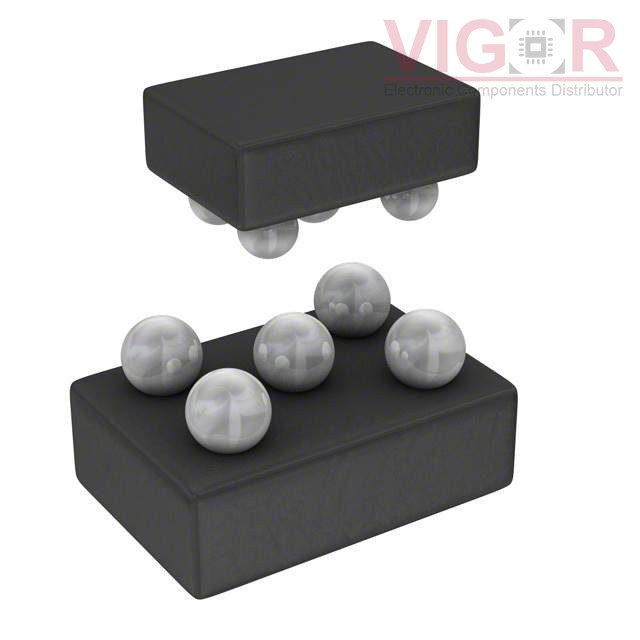

Image is for reference,
please contact us to get the real picture

Part No :: CSPEMI202AG

Manufacturer: VIGOR

Description: DATA LINE FILTER

Catalog: EMI/RFI Filters (LC, RC Networks)

Shipped from: HK warehouse

Expected Shipping Date: Oct 14 - Oct 18 2025

DataSheet: CSPEMI202AG PDF

Availability: 4074143 pieces

Unit Price: ~~$0.14000~~

Current price of CSPEMI202AG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CSPEMI202AG Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Last Time Buy
Type:	Low Pass
Filter Order:	2nd
Technology:	RC (Pi)
Number of Channels:	2
Center / Cutoff Frequency:	60MHz (Cutoff)
Attenuation Value:	35dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms):	68
Current:	-
Values:	R = 68Ohms, C = 47pF
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	Audio
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	5-WFBGA, WLCSP
Size / Dimension:	0.056" L x 0.037" W (1.41mm x 0.93mm)
Height:	0.026" (0.65mm)

Please confirm the specifications of the products when ordering.
