IP3348CX20,135

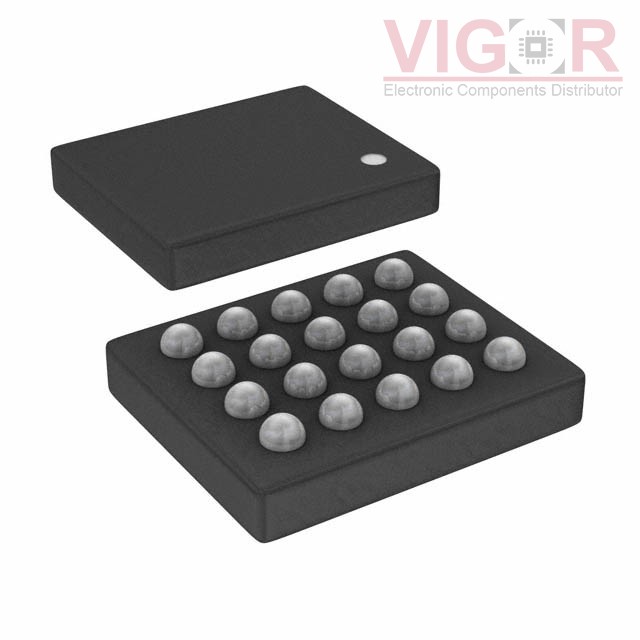

Image is for reference,
please contact us to get the real picture

Part No :: IP3348CX20,135

Manufacturer: VIGOR

Description: IP3348CX20 - DATA LINE FILTER

Catalog: EMI/RFI Filters (LC, RC Networks)

Shipped from: HK warehouse

Expected Shipping Date: Oct 13 - Oct 17 2025

DataSheet: IP3348CX20,135 PDF

Availability: 4500 pieces

Unit Price: ~~$0.14000~~

Current price of IP3348CX20,135 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IP3348CX20,135 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Type:	Low Pass
Filter Order:	3rd
Technology:	LC (Pi)
Number of Channels:	8
Center / Cutoff Frequency:	350MHz (Cutoff)
Attenuation Value:	40dB @ 1GHz ~ 3GHz
Resistance - Channel (Ohms):	10
Current:	20 mA
Values:	L = 15nH (Total), C = 25pF (Total)
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	20-UFBGA, WLCSP
Size / Dimension:	0.124" L x 0.042" W (3.16mm x 1.06mm)
Height:	0.026" (0.65mm)
