BNX023-01B

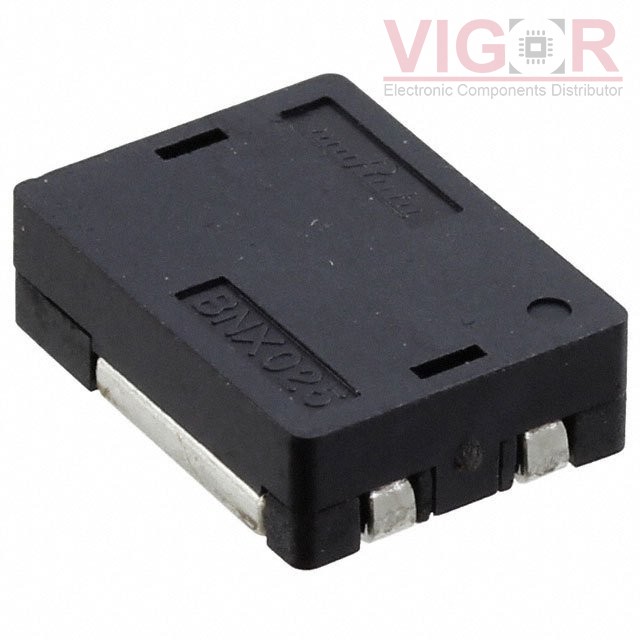

Image is for reference,
please contact us to get the real picture

Part No :: BNX023-01B

Manufacturer: TOKO / Murata

Description: FILTER LC 1UF SMD

Catalog: EMI/RFI Filters (LC, RC Networks)

Shipped from: HK warehouse

Expected Shipping Date: Oct 16 - Oct 20 2025

DataSheet: BNX023-01B PDF

Availability: 0 pieces

Unit Price: ~~$3.07500~~

Current price of BNX023-01B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BNX023-01B Specifications

Type	Description
Series:	EMIFIL®, BNX
Package:	Bulk
Part Status:	Active
Type:	Low Pass
Filter Order:	5th
Technology:	LC
Number of Channels:	2
Center / Cutoff Frequency:	-
Attenuation Value:	35dB @ 1MHz ~ 1GHz
Resistance - Channel (Ohms):	0.00043
Current:	15 A
Values:	C = 1µF
ESD Protection:	No
Operating Temperature:	-40°C ~ 125°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	100V
Mounting Type:	Surface Mount
Package / Case:	4-SMD, No Lead
Size / Dimension:	0.476" L x 0.358" W (12.10mm x 9.10mm)
Height:	0.130" (3.30mm)

Please confirm the specifications of the products when ordering.
