CM6320

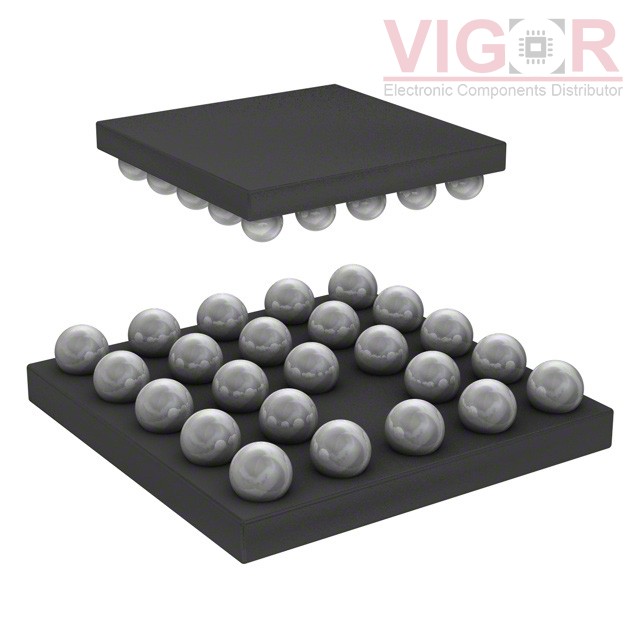

Image is for reference,
please contact us to get the real picture

Part No :: CM6320

Manufacturer: VIGOR

Description: DATA LINE FILTER

Catalog: EMI/RFI Filters (LC, RC Networks)

Shipped from: HK warehouse

Expected Shipping Date: Oct 30 - Nov 03 2025

DataSheet: CM6320 PDF

Availability: 5000 pieces

Unit Price: ~~$0.22000~~

Current price of CM6320 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CM6320 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Type:	Low Pass
Filter Order:	2nd
Technology:	RC (Pi)
Number of Channels:	10
Center / Cutoff Frequency:	-
Attenuation Value:	-
Resistance - Channel (Ohms):	70
Current:	-
Values:	R = 70Ohms, C = 30pF
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	24-UFBGA, WLCSP
Size / Dimension:	0.077" L x 0.077" W (1.96mm x 1.96mm)
Height:	0.025" (0.64mm)

Please confirm the specifications of the products when ordering.
