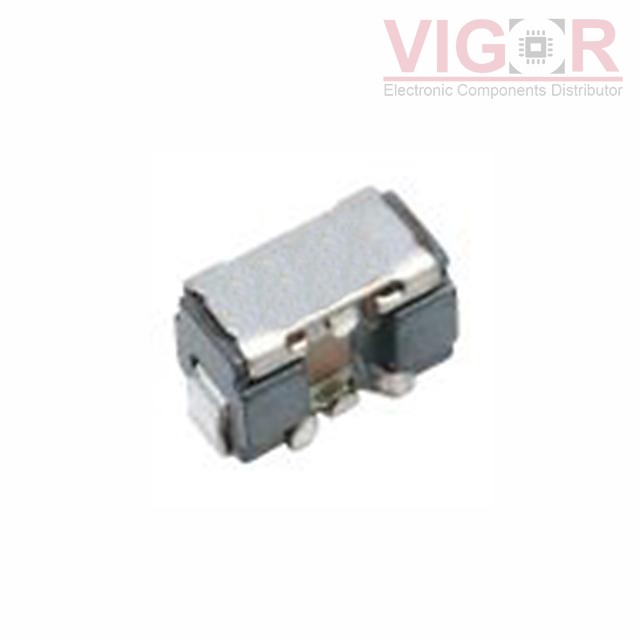

ACH32C-470-T001

ACH32C-470-T001

Image is for reference,
please contact us to get the real picture

Part No :

ACH32C-470-T001

Manufacturer
TDK Corporation
Description
FILTER LC(T) 47PF SMD
Catalog
EMI/RFI Filters (LC, RC Networks)
Shipped from
HK warehouse
Expected Shipping Date
Oct 23 - Oct 27 2025
DataSheet
ACH32C-470-T001 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of ACH32C-470-T001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACH32C-470-T001 Specifications
Type Description
Series:ACH
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Low Pass
Filter Order:3rd
Technology:LC (T-Type)
Number of Channels:1
Center / Cutoff Frequency:-
Attenuation Value:-15dB @ 650MHz ~ 2.5GHz
Resistance - Channel (Ohms):0.002
Current:6 A
Values:C = 47pF
ESD Protection:No
Operating Temperature:-40°C ~ 125°C
Applications:General Purpose
Voltage - Rated:50V
Mounting Type:Surface Mount
Package / Case:1206 (3216 Metric), 3 PC Pad
Size / Dimension:0.126" L x 0.063" W (3.20mm x 1.60mm)
Height:0.091" (2.30mm)
