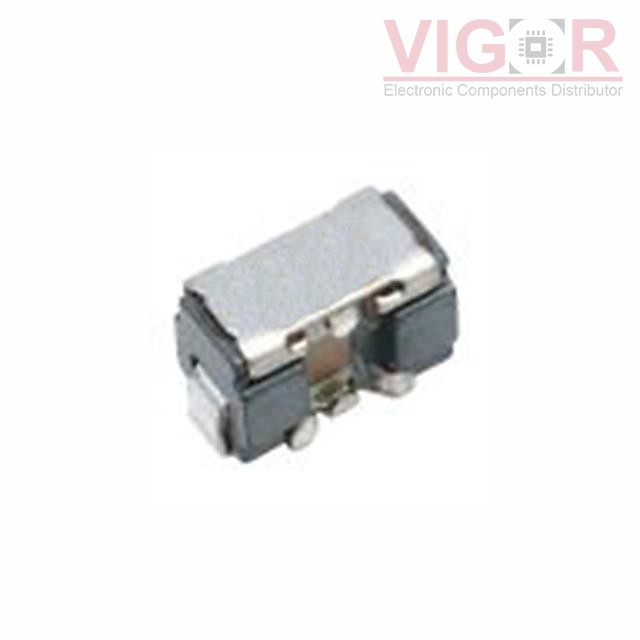

ACH32C-100-TL001

Image is for reference,
please contact us to get the real picture

Part No :: ACH32C-100-TL001

Manufacturer: TDK Corporation

Description: FILTER LC(T) 10PF SMD

Catalog: EMI/RFI Filters (LC, RC Networks)

Shipped from: HK warehouse

Expected Shipping Date: Oct 26 - Oct 30 2025

DataSheet: ACH32C-100-TL001 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of ACH32C-100-TL001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACH32C-100-TL001 Specifications

Type	Description
Series:	ACH
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Low Pass
Filter Order:	3rd
Technology:	LC (T-Type)
Number of Channels:	1
Center / Cutoff Frequency:	-
Attenuation Value:	-15dB @ 2GHz ~ 6GHz
Resistance - Channel (Ohms):	0.002
Current:	6 A
Values:	C = 10pF
ESD Protection:	No
Operating Temperature:	-40°C ~ 125°C
Applications:	General Purpose
Voltage - Rated:	50V
Mounting Type:	Surface Mount
Package / Case:	1206 (3216 Metric), 3 PC Pad
Size / Dimension:	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height:	0.091" (2.30mm)

Please confirm the specifications of the products when ordering.
