CM6305

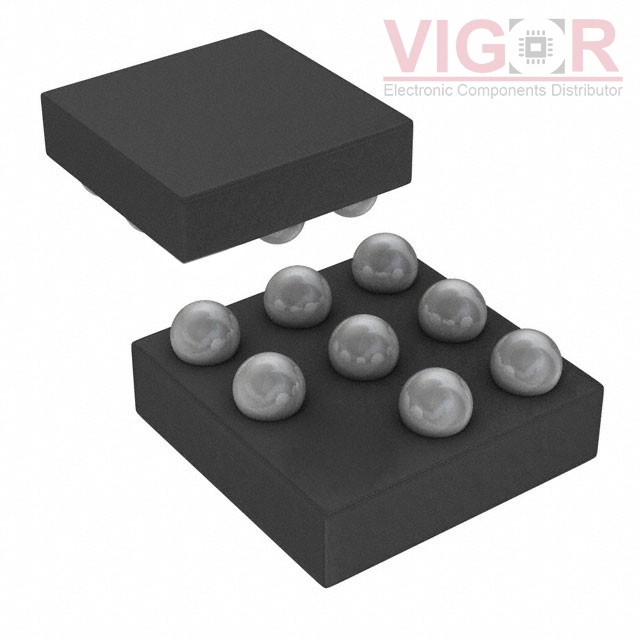

Image is for reference,
please contact us to get the real picture

Part No :: CM6305

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: FILTER RC(PI) ESD SMD

Catalog: EMI/RFI Filters (LC, RC Networks)

Shipped from: HK warehouse

Expected Shipping Date: Oct 27 - Oct 31 2025

DataSheet: CM6305 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of CM6305 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CM6305 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Low Pass
Filter Order:	2nd
Technology:	RC (Pi)
Number of Channels:	3
Center / Cutoff Frequency:	-
Attenuation Value:	-
Resistance - Channel (Ohms):	47, 100
Current:	-
Values:	R = 47Ohms, 100Ohms, C = 10pF
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	8-UFBGA, WLCSP
Size / Dimension:	0.046" L x 0.046" W (1.16mm x 1.16mm)
Height:	0.025" (0.64mm)

Please confirm the specifications of the products when ordering.
