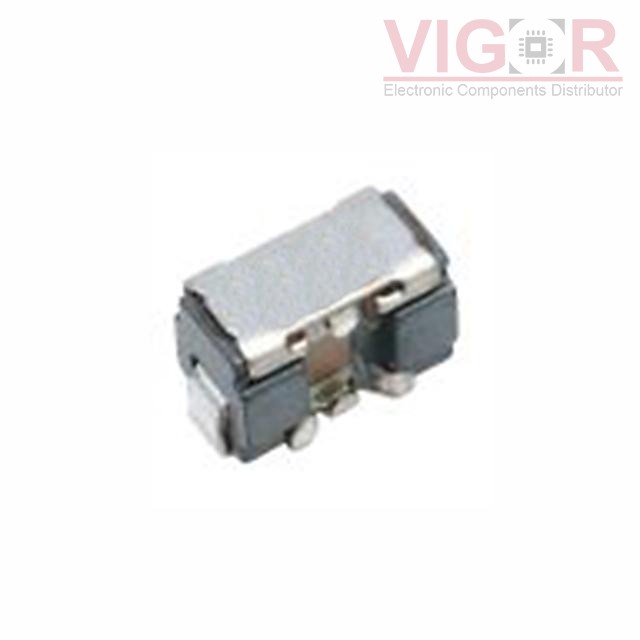

ACH32C-101-T001

ACH32C-101-T001

Image is for reference,
please contact us to get the real picture

Part No :

ACH32C-101-T001

Manufacturer
TDK Corporation
Description
FILTER LC(T) 100PF SMD
Catalog
EMI/RFI Filters (LC, RC Networks)
Shipped from
HK warehouse
Expected Shipping Date
Nov 01 - Nov 05 2025
DataSheet
ACH32C-101-T001 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of ACH32C-101-T001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACH32C-101-T001 Specifications
Type Description
Series:ACH
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Low Pass
Filter Order:3rd
Technology:LC (T-Type)
Number of Channels:1
Center / Cutoff Frequency:-
Attenuation Value:-20dB @ 450MHz ~ 1.3GHz
Resistance - Channel (Ohms):0.002
Current:6 A
Values:C = 100pF
ESD Protection:No
Operating Temperature:-40°C ~ 125°C
Applications:General Purpose
Voltage - Rated:50V
Mounting Type:Surface Mount
Package / Case:1206 (3216 Metric), 3 PC Pad
Size / Dimension:0.126" L x 0.063" W (3.20mm x 1.60mm)
Height:0.091" (2.30mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MEA1210PE220T001

MEA1210PE220T001

FILTER LC(PI) 22PF 250MHZ SMD
HOT KNA16100C45UA7TS

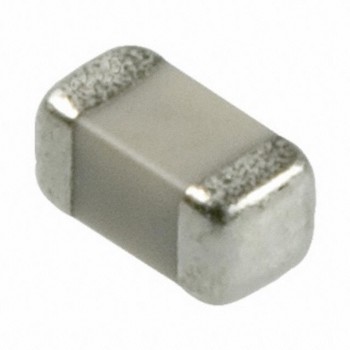

KNA16100C45UA7TS

FILTER LC 45PF 100MHZ SMD
HOT PEMI4QFN/RW,132

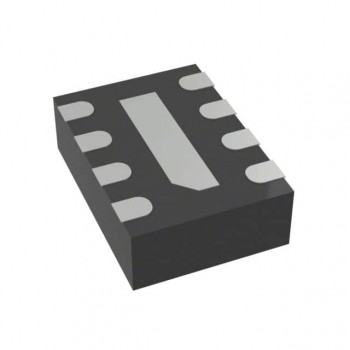

PEMI4QFN/RW,132
