AOZ8030DIL

AOZ8030DIL

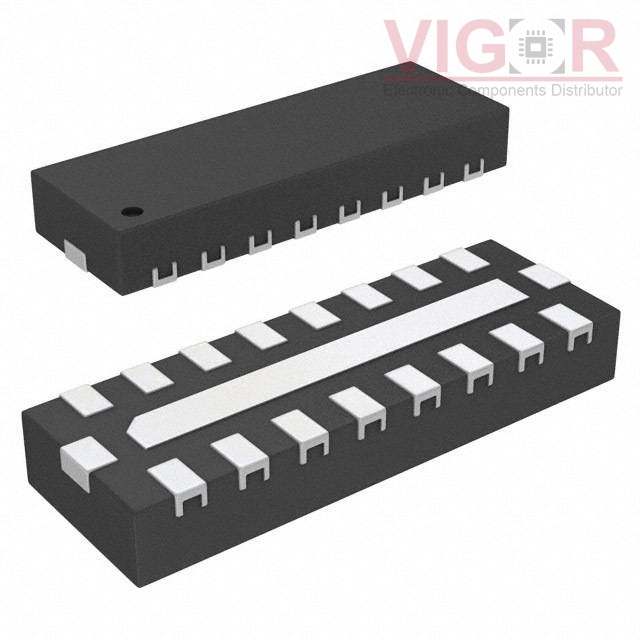

Image is for reference,
please contact us to get the real picture

Part No :

AOZ8030DIL

Manufacturer
Alpha and Omega Semiconductor, Inc.
Description
FILTER RC(PI) 100 OHM/28PF SMD
Catalog
EMI/RFI Filters (LC, RC Networks)
Shipped from
HK warehouse
Expected Shipping Date
Nov 02 - Nov 06 2025
DataSheet
AOZ8030DIL PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of AOZ8030DIL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AOZ8030DIL Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Obsolete
Type:Low Pass
Filter Order:2nd
Technology:RC (Pi)
Number of Channels:8
Center / Cutoff Frequency:90MHz (Cutoff)
Attenuation Value:-35dB @ 800MHz ~ 2.2GHz
Resistance - Channel (Ohms):100
Current:20 mA
Values:R = 100Ohms, C = 28pF
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:5V
Mounting Type:Surface Mount
Package / Case:16-UFDFN Exposed Pad
Size / Dimension:0.138" L x 0.047" W (3.50mm x 1.20mm)
Height:0.024" (0.60mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 4202-004

4202-004

FILTER LC(PI) 2500PF CHASSIS
HOT BGF 109L E6328

BGF 109L E6328

FILTER LC 28PF (TOTAL) ESD SMD
HOT ELK-EA221FA

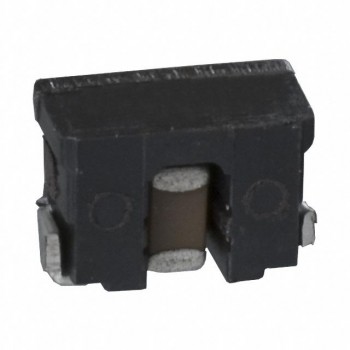

ELK-EA221FA
