BGF109CE6328XTSA1

Part No :: BGF109CE6328XTSA1

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 4965180

Description: FILTER RC 70 OHM/17PF ESD SMD

Catalog: EMI/RFI Filters (LC, RC Networks)

DataSheet: BGF109CE6328XTSA1 PDF

Country of origin: -

Date code: -

BGF109CE6328XTSA1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Low Pass
Filter Order:	2nd
Technology:	RC
Number of Channels:	10
Center / Cutoff Frequency:	-
Attenuation Value:	45dB @ 800MHz ~ 2GHz
Resistance - Channel (Ohms):	70
Current:	-
Values:	R = 70Ohms, C = 17pF
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	7V
Mounting Type:	Surface Mount

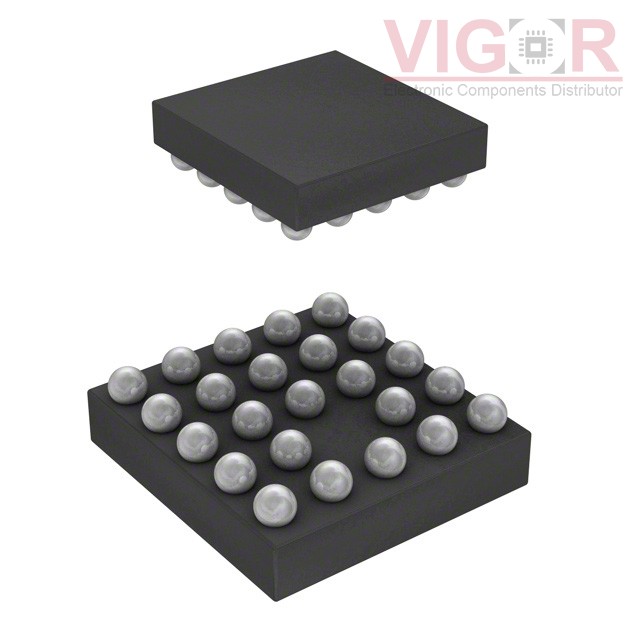

Package / Case:	24-UFBGA
Size / Dimension:	0.081" L x 0.077" W (2.07mm x 1.95mm)
Height:	0.026" (0.65mm)
