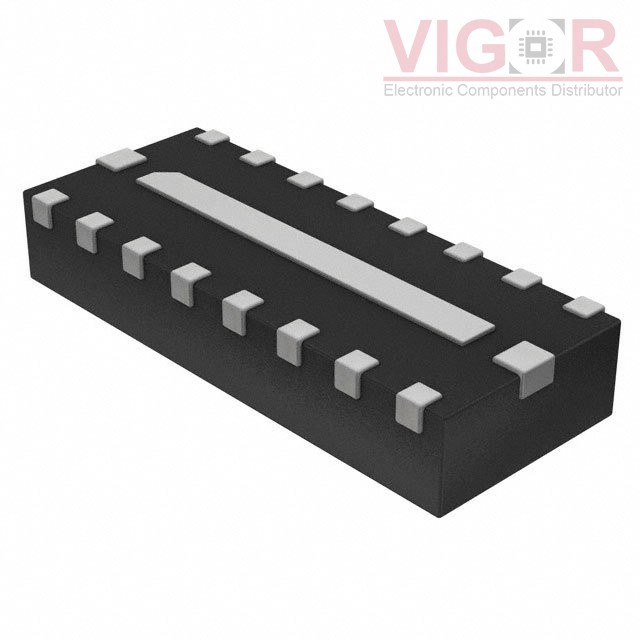

Part No :

CM1406-08DE

Manufacturer
Sanyo Semiconductor/ON Semiconductor
VIGOR # :

4965252

Description
FILTER RC(PI) 200 OHM/15PF SMD
Catalog
EMI/RFI Filters (LC, RC Networks)
DataSheet
CM1406-08DE PDF
Country of origin
Confirming
Date code
TBC
ads
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Obsolete
Type:Low Pass
Filter Order:2nd
Technology:RC (Pi)
Number of Channels:8
Center / Cutoff Frequency:105MHz (Cutoff)
Attenuation Value:30dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms):200
Current:-
Values:R = 200Ohms, C = 15pF
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:16-WFDFN Exposed Pad
Size / Dimension:0.157" L x 0.063" W (4.00mm x 1.60mm)
Height:0.031" (0.79mm)
