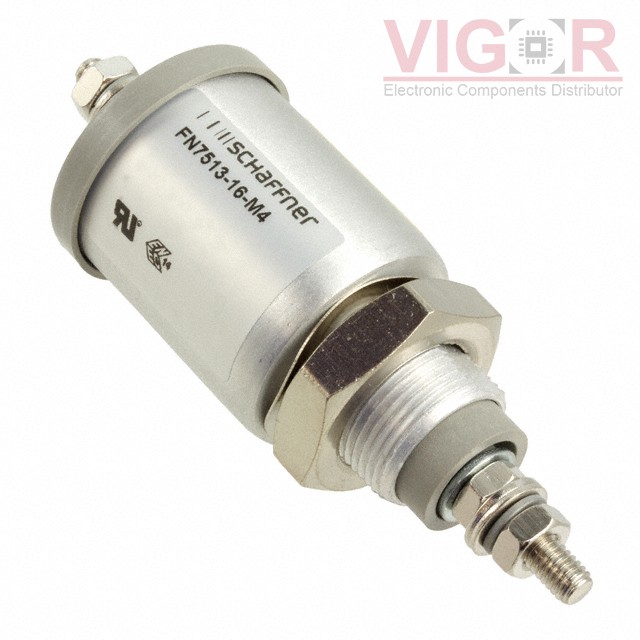

FN7513-16-M4

Part No :: FN7513-16-M4

Manufacturer: Schaffner EMC, Inc.

VIGOR # :: 4045903

Description: CAP FEEDTHRU 0.1UF 20% 1KV AXIAL

Catalog: Feed Through Capacitors

DataSheet: FN7513-16-M4 PDF

Country of origin: -

Date code: -

FN7513-16-M4 Specifications

Type	Description
Series:	FN 751X
Package:	Tray
Part Status:	Active
Capacitance:	0.1 µF
Tolerance:	±20%
Voltage - Rated:	1000V (1kV)
Current:	16 A
DC Resistance (DCR) (Max):	0.58mOhm (Typ)
Operating Temperature:	-40°C ~ 100°C
Insertion Loss:	-
Temperature Coefficient:	-
Ratings:	Y2
Mounting Type:	-
Package / Case:	Axial - Threaded Terminals
Size / Dimension:	1.061" Dia x 3.031" L (26.95mm x 77.00mm)
Height (Max):	-
Thread Size:	M16x2

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 129

Shipped from

HK warehouse

Expected Shipping Date

Apr 26 - Apr 30 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$60.6400~~	~~$60.64~~
10	~~$57.3805~~	~~$573.80~~
100	~~$46.7846~~	~~$4 678.46~~

Current price of FN7513-16-M4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

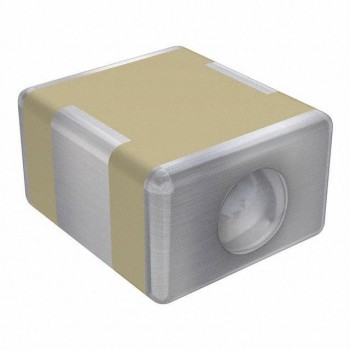

SBSMC5000683MXT

CAP FEEDTHRU 0.068UF 500V 2220

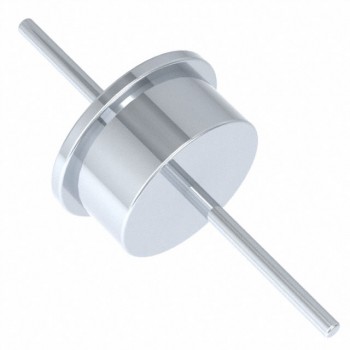

SFSUC5000680MC0

CAP FEEDTHRU 68PF 20% 500V AXIAL

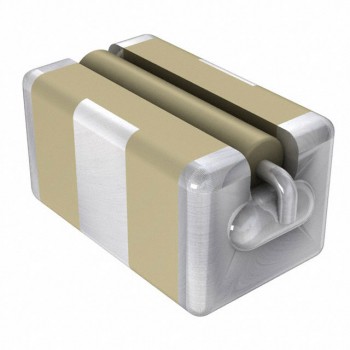

SBSGC5000102MXT
