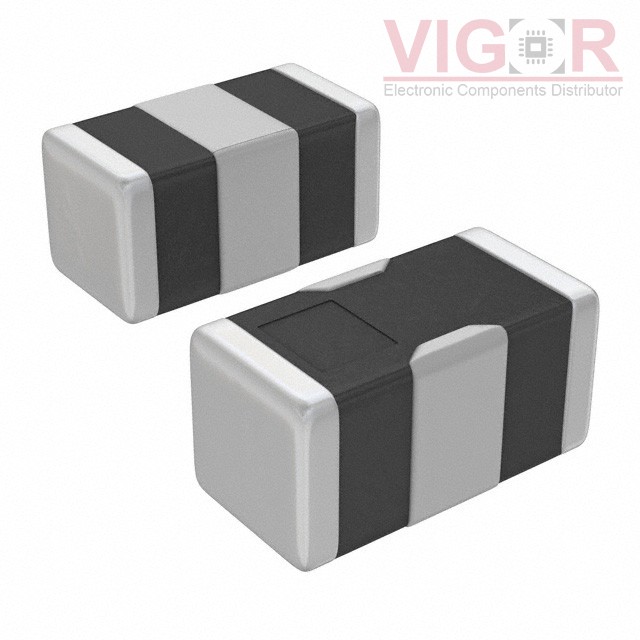

DEA162450BT-1260B3

Part No :: DEA162450BT-1260B3

Manufacturer: TDK Corporation

VIGOR # :: 4044631

Description: RF FILTER BAND PASS 2.45GHZ 0603

Catalog: RF Filters

DataSheet: DEA162450BT-1260B3 PDF

Country of origin: -

Date code: -

DEA162450BT-1260B3 Specifications

Type	Description
Series:	DEA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
Frequency:	2.45GHz Center
Bandwidth:	100MHz
Filter Type:	Band Pass
Ripple:	-
Insertion Loss:	1.7dB
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric), 4 PC Pad
Size / Dimension:	0.063" L x 0.032" W (1.60mm x 0.80mm)
Height (Max):	0.028" (0.70mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 66501

Shipped from

HK warehouse

Expected Shipping Date

Jul 20 - Jul 24 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.8100~~	~~$0.81~~
4000	~~$0.1999~~	~~$799.68~~
8000	~~$0.1882~~	~~$1 505.28~~
12000	~~$0.1764~~	~~$2 116.80~~
28000	~~$0.1646~~	~~$4 609.92~~

Current price of DEA162450BT-1260B3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
