DRAQ127-330-R

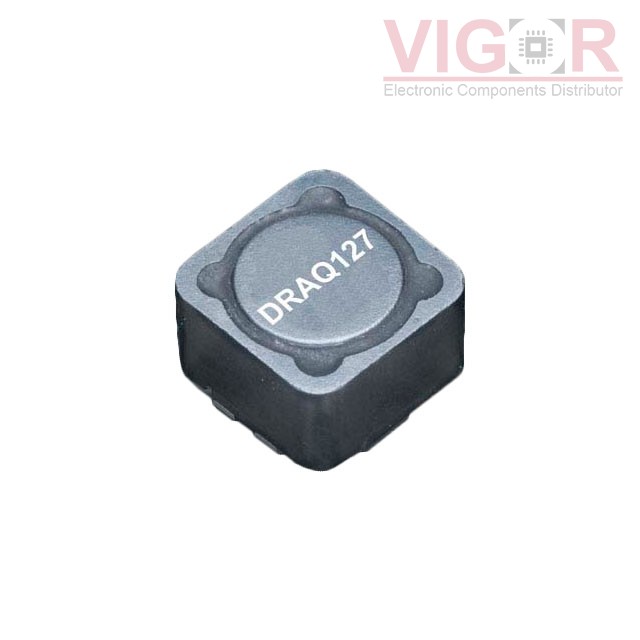

Image is for reference,
please contact us to get the real picture

Part No :: DRAQ127-330-R

Manufacturer: PowerStor (Eaton)

Description: INDUCT ARRAY 2 COIL 32UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: DRAQ127-330-R PDF

Availability: 41 pieces

Unit Price: ~~$1.40000~~

Current price of DRAQ127-330-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DRAQ127-330-R Specifications

Type	Description
Series:	DRAQ127
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	32 µH
Inductance - Connected In Series:	128 µH
Tolerance:	±25%
Current Rating - Parallel:	3.22 A
Current Rating - Series:	1.61 A
Current Saturation - Parallel:	4.98 A
Current Saturation - Series:	2.49 A
DC Resistance (DCR) - Parallel:	72mOhm Max
DC Resistance (DCR) - Series:	288mOhm Max
Shielding:	Shielded
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 165°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.480" L x 0.480" W (12.20mm x 12.20mm)
Height:	0.315" (8.00mm)

Please confirm the specifications of the products when ordering.
