CTX8-4A-R

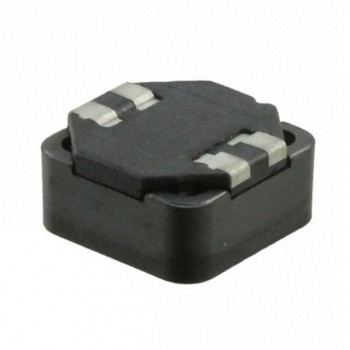

Image is for reference,
please contact us to get the real picture

Part No :: CTX8-4A-R

Manufacturer: PowerStor (Eaton)

Description: INDUCT ARRAY 2 COIL 8.7UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: CTX8-4A-R PDF

Availability: 218 pieces

Unit Price: ~~$4.44000~~

Current price of CTX8-4A-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CTX8-4A-R Specifications

Type	Description
Series:	OCTA-PAC® PLUS
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	8.7 µH
Inductance - Connected In Series:	34.8 µH
Tolerance:	±25%
Current Rating - Parallel:	5.49 A
Current Rating - Series:	2.74 A
Current Saturation - Parallel:	4.5 A
Current Saturation - Series:	2.25 A
DC Resistance (DCR) - Parallel:	15mOhm Max
DC Resistance (DCR) - Series:	59mOhm Max
Shielding:	Unshielded
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.550" L x 0.550" W (13.97mm x 13.97mm)
Height:	0.250" (6.35mm)
