SRF1260A-220M

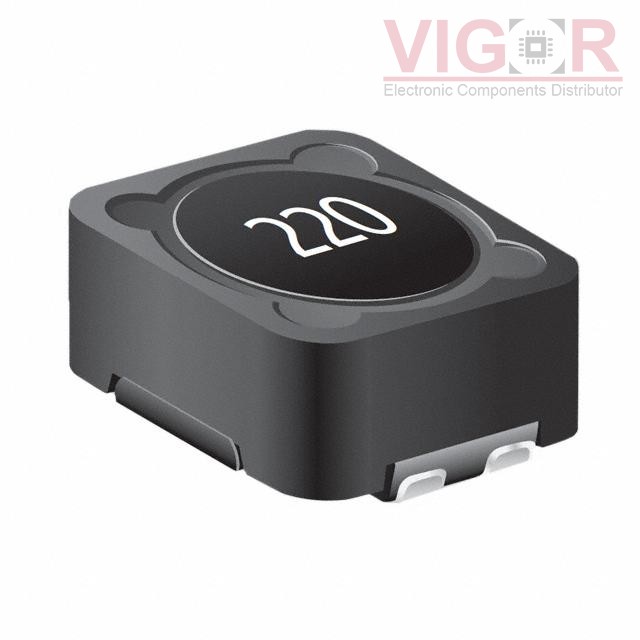

Image is for reference,
please contact us to get the real picture

Part No :: SRF1260A-220M

Manufacturer: J.W. Miller / Bourns

Description: INDUCT ARRAY 2 COIL 22UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: SRF1260A-220M PDF

Availability: 846 pieces

Unit Price: ~~$1.57000~~

Current price of SRF1260A-220M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SRF1260A-220M Specifications

Type	Description
Series:	SRF1260A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	22 µH
Inductance - Connected In Series:	88 µH
Tolerance:	±20%
Current Rating - Parallel:	3.7 A
Current Rating - Series:	1.84 A
Current Saturation - Parallel:	4.71 A
Current Saturation - Series:	2.36 A
DC Resistance (DCR) - Parallel:	45.1mOhm Max
DC Resistance (DCR) - Series:	172mOhm Max
Shielding:	Shielded
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height:	0.244" (6.20mm)

Please confirm the specifications of the products when ordering.
