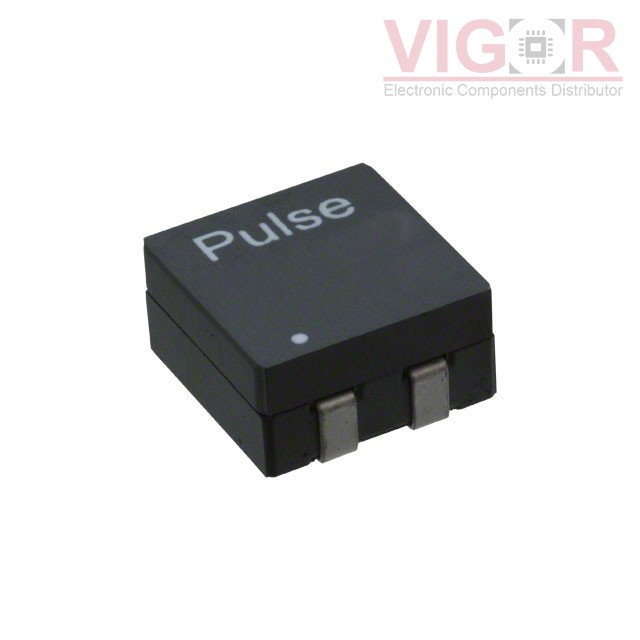

PA0766.561NLT

Part No :: PA0766.561NLT

Manufacturer: PulseLarsen Antenna

VIGOR # :: 1646479

Description: INDUCT ARRAY 2 COIL 284NH SMD

Catalog: Arrays, Signal Transformers

DataSheet: PA0766.561NLT PDF

Country of origin: -

Date code: -

PA0766.561NLT Specifications

Type	Description
Series:	PA0766NL
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	284 nH
Inductance - Connected In Series:	1.14 µH
Tolerance:	±20%
Current Rating - Parallel:	37 A
Current Rating - Series:	18.5 A
Current Saturation - Parallel:	37 A
Current Saturation - Series:	18.5 A
DC Resistance (DCR) - Parallel:	0.38mOhm Max
DC Resistance (DCR) - Series:	1.5mOhm Max
Shielding:	Unshielded
Ratings:	-
Operating Temperature:	-40°C ~ 130°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.551" L x 0.531" W (14.00mm x 13.50mm)
Height:	0.276" (7.00mm)
