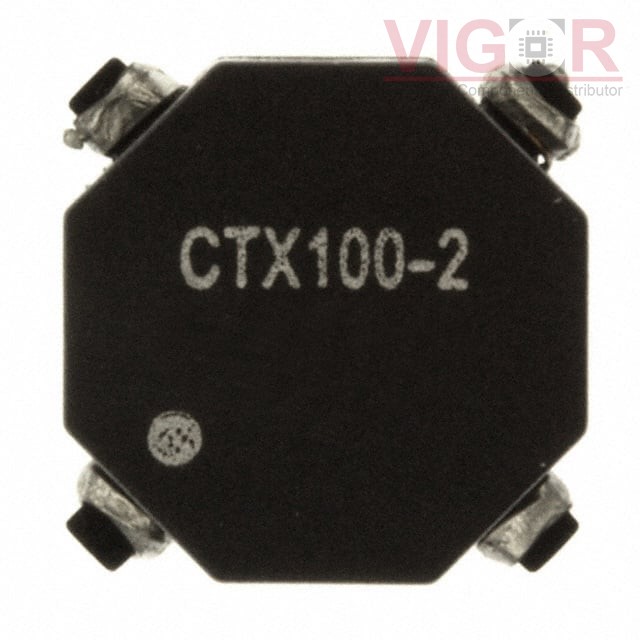

CTX100-2-R

Image is for reference,
please contact us to get the real picture

Part No :: CTX100-2-R

Manufacturer: PowerStor (Eaton)

Description: INDUCT ARRAY 2 COIL 99.45UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: CTX100-2-R PDF

Availability: 814 pieces

Unit Price: ~~$5.21000~~

Current price of CTX100-2-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CTX100-2-R Specifications

Type	Description
Series:	OCTA-PAC®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	99.45 µH
Inductance - Connected In Series:	397.81 µH
Tolerance:	±20%
Current Rating - Parallel:	630 mA
Current Rating - Series:	320 mA
Current Saturation - Parallel:	-
Current Saturation - Series:	-
DC Resistance (DCR) - Parallel:	457mOhm Max
DC Resistance (DCR) - Series:	1.828Ohm Max
Shielding:	Unshielded
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.450" L x 0.450" W (11.43mm x 11.43mm)
Height:	0.235" (5.97mm)

Please confirm the specifications of the products when ordering.
