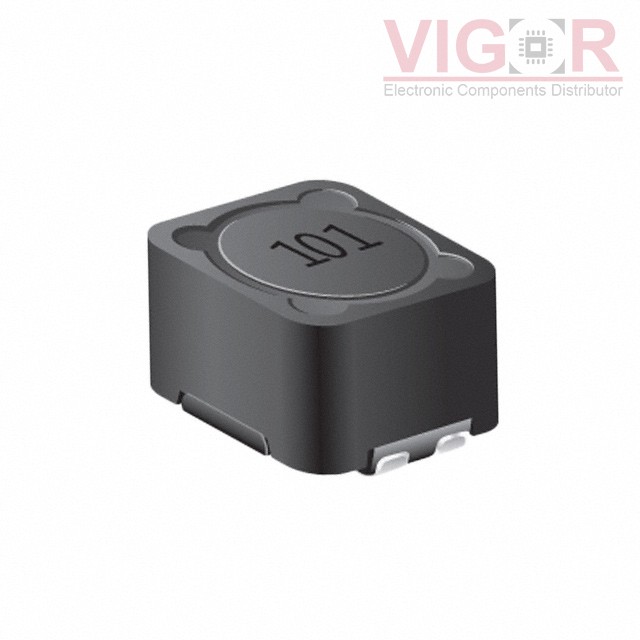

SRF1280A-2R2Y

Part No :: SRF1280A-2R2Y

Manufacturer: J.W. Miller / Bourns

Description: INDUCT ARRAY 2 COIL 2.2UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: SRF1280A-2R2Y PDF

Availability: 0 pieces

Unit Price: ~~$1.98000~~

Current price of SRF1280A-2R2Y is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SRF1280A-2R2Y Specifications

Type	Description
Series:	SRF1280A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	2.2 µH
Inductance - Connected In Series:	8.8 µH
Tolerance:	±30%
Current Rating - Parallel:	12.5 A
Current Rating - Series:	6.23 A
Current Saturation - Parallel:	25.5 A
Current Saturation - Series:	12.7 A
DC Resistance (DCR) - Parallel:	9.2mOhm Max
DC Resistance (DCR) - Series:	33.8mOhm Max
Shielding:	Shielded
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height:	0.315" (8.00mm)
