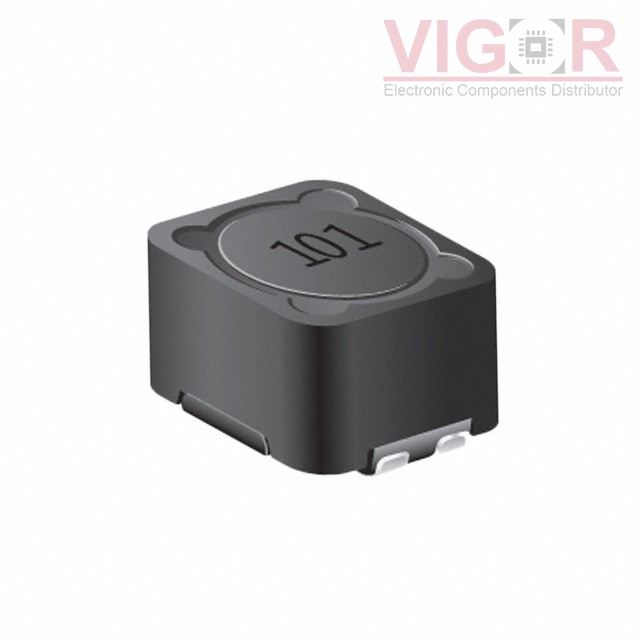

SRF1280A-681M

Part No :: SRF1280A-681M

Manufacturer: J.W. Miller / Bourns

Description: INDUCT ARRAY 2 COIL 680UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: SRF1280A-681M PDF

Availability: 0 pieces

Unit Price: ~~$0.94473~~

Current price of SRF1280A-681M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SRF1280A-681M Specifications

Type	Description
Series:	SRF1280A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	680 µH
Inductance - Connected In Series:	2.72 mH
Tolerance:	±20%
Current Rating - Parallel:	760 mA
Current Rating - Series:	380 mA
Current Saturation - Parallel:	1.39 A
Current Saturation - Series:	697 mA
DC Resistance (DCR) - Parallel:	1.296Ohm Max
DC Resistance (DCR) - Series:	4.888Ohm Max
Shielding:	Shielded
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height:	0.315" (8.00mm)
