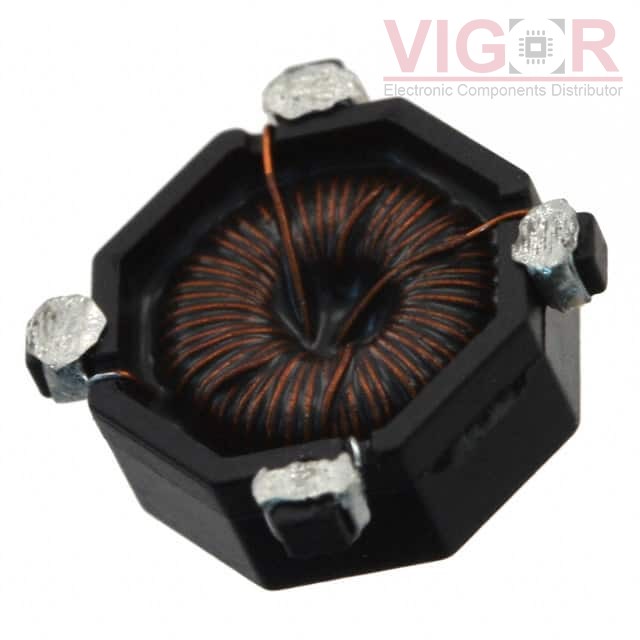

CTX20-1-R

Part No :: CTX20-1-R

Manufacturer: PowerStor (Eaton)

Description: INDUCT ARRAY 2 COIL 19.6UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: CTX20-1-R PDF

Availability: 1196 pieces

Unit Price: ~~$4.65000~~

Current price of CTX20-1-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CTX20-1-R Specifications

Type	Description
Series:	OCTA-PAC®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	19.6 µH
Inductance - Connected In Series:	78.4 µH
Tolerance:	±20%
Current Rating - Parallel:	1 A
Current Rating - Series:	500 mA
Current Saturation - Parallel:	-
Current Saturation - Series:	-
DC Resistance (DCR) - Parallel:	146mOhm Max
DC Resistance (DCR) - Series:	583mOhm Max
Shielding:	Unshielded
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.450" L x 0.450" W (11.43mm x 11.43mm)
Height:	0.165" (4.19mm)
