5022-514J

5022-514J

Image is for reference,
please contact us to get the real picture

Part No :

5022-514J

Manufacturer
API Delevan
Description
FIXED IND 510UH 139MA 18.8 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Nov 13 - Nov 17 2025
DataSheet
5022-514J PDF
Availability
0 pieces
Unit Price
$1.96230

Current price of 5022-514J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5022-514J Specifications
Type Description
Series:5022
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:-
Material - Core:Iron
Inductance:510 µH
Tolerance:±5%
Current Rating (Amps):139 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):18.8Ohm Max
Q @ Freq:65 @ 790kHz
Frequency - Self Resonant:3.7MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:790 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.520" L x 0.250" W (13.21mm x 6.35mm)
Height - Seated (Max):0.230" (5.80mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT TPI078060L056N

TPI078060L056N

FIXED IND 56NH 53A 0.31 MOHM SMD

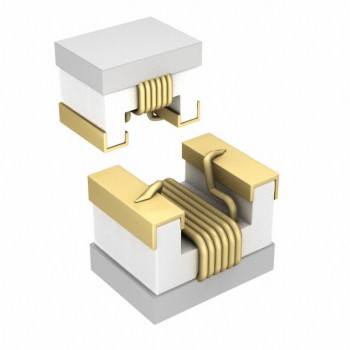

HOT 744760227C

744760227C

FIXED IND 270NH 350MA 1.29 OHM

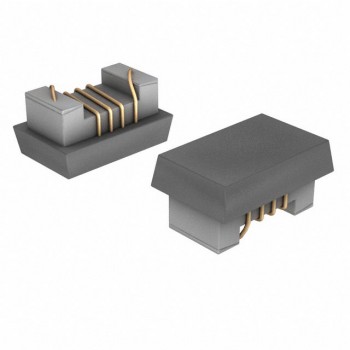

HOT 744917118
