CVH201610A-1R0M

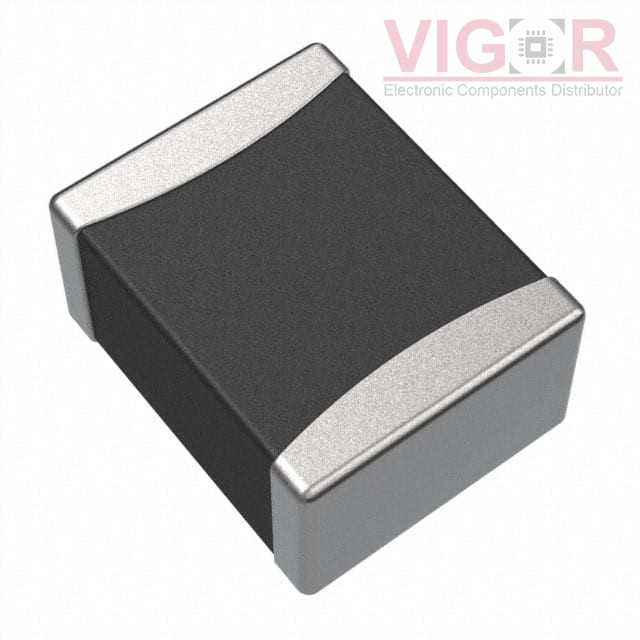

Image is for reference,
please contact us to get the real picture

Part No :: CVH201610A-1R0M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 1UH 1.4A 106.25MOHM SM

Catalog: Fixed Inductors

DataSheet: CVH201610A-1R0M PDF

Availability: 325 pieces

Unit Price: ~~$0.32000~~

Current price of CVH201610A-1R0M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CVH201610A-1R0M Specifications

Type	Description
Series:	CVH201610A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Multilayer
Material - Core:	Ferrite
Inductance:	1 µH
Tolerance:	±20%
Current Rating (Amps):	1.4 A
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	106.25mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	70MHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0806 (2016 Metric)
Supplier Device Package:	0806
Size / Dimension:	0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max):	0.039" (1.00mm)
