0420CDMCCDS-R68MC

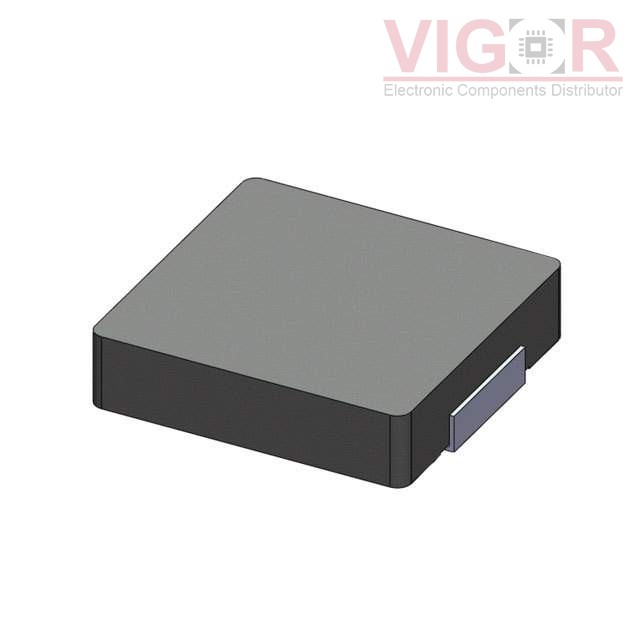

Image is for reference,
please contact us to get the real picture

Part No :: 0420CDMCCDS-R68MC

Manufacturer: Sumida Corporation

Description: FIXED IND 680NH 8A 18 MOHM SMD

Catalog: Fixed Inductors

DataSheet: 0420CDMCCDS-R68MC PDF

Availability: 2210 pieces

Unit Price: ~~$0.75000~~

Current price of 0420CDMCCDS-R68MC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0420CDMCCDS-R68MC Specifications

Type	Description
Series:	0420CDMCC/DS
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Molded
Material - Core:	Metal
Inductance:	680 nH
Tolerance:	±20%
Current Rating (Amps):	8 A
Current - Saturation (Isat):	9.6A
Shielding:	Shielded
DC Resistance (DCR):	18mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	SMD
Size / Dimension:	0.173" L x 0.165" W (4.40mm x 4.20mm)
Height - Seated (Max):	0.079" (2.00mm)
