IHLP2525CZER100M8A

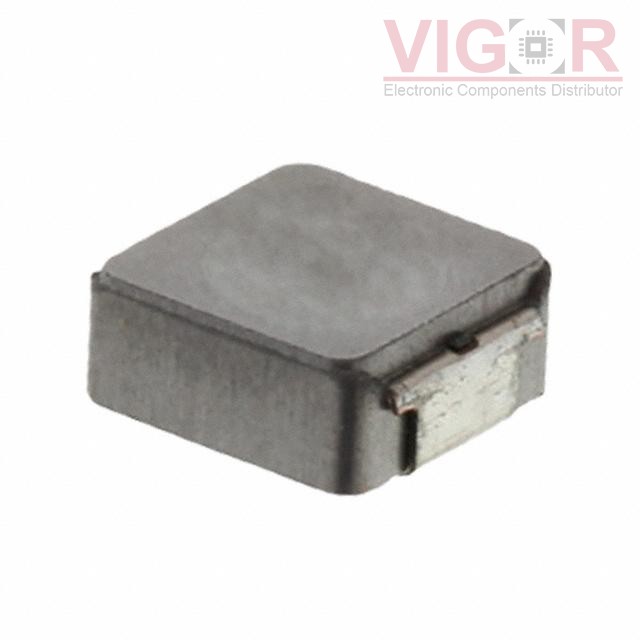

Image is for reference,
please contact us to get the real picture

Part No :: IHLP2525CZER100M8A

Manufacturer: Vishay / Dale

Description: FIXED IND 10UH 4A 76.9 MOHM SMD

Catalog: Fixed Inductors

DataSheet: IHLP2525CZER100M8A PDF

Availability: 2074 pieces

Unit Price: ~~$1.41000~~

Current price of IHLP2525CZER100M8A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IHLP2525CZER100M8A Specifications

Type	Description
Series:	IHLP-2525CZ-8A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Molded
Material - Core:	-
Inductance:	10 µH
Tolerance:	±20%
Current Rating (Amps):	4 A
Current - Saturation (Isat):	2.9A
Shielding:	Shielded
DC Resistance (DCR):	76.9mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	13.9MHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 180°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.270" L x 0.255" W (6.86mm x 6.47mm)
Height - Seated (Max):	0.118" (3.00mm)
