SDE1006A-181K

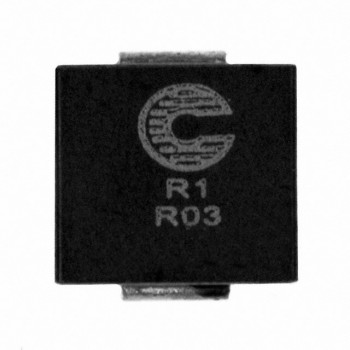

Image is for reference,
please contact us to get the real picture

Part No :: SDE1006A-181K

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 180UH 1A 630 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SDE1006A-181K PDF

Availability: 0 pieces

Unit Price: ~~$0.39215~~

Current price of SDE1006A-181K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SDE1006A-181K Specifications

Type	Description
Series:	SDE1006A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	180 µH
Tolerance:	±10%
Current Rating (Amps):	1 A
Current - Saturation (Isat):	1.1A
Shielding:	Unshielded
DC Resistance (DCR):	630mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	6.1MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.394" L x 0.354" W (10.00mm x 9.00mm)
Height - Seated (Max):	0.228" (5.80mm)
