B82496C3220J000

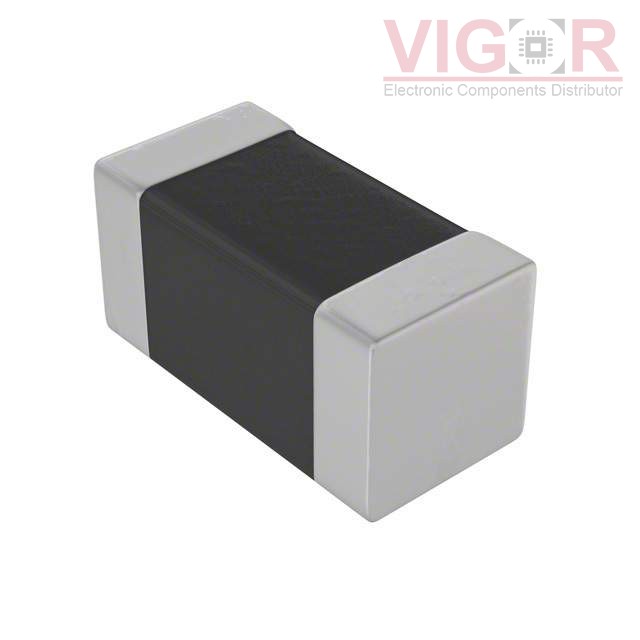

Image is for reference,
please contact us to get the real picture

Part No :: B82496C3220J000

Manufacturer: TDK EPCOS

Description: FIXED IND 22NH 380MA 500 MOHM

Catalog: Fixed Inductors

DataSheet: B82496C3220J000 PDF

Availability: 2745 pieces

Unit Price: ~~$0.46000~~

Current price of B82496C3220J000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82496C3220J000 Specifications

Type	Description
Series:	SIMID
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	22 nH
Tolerance:	±5%
Current Rating (Amps):	380 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	500mOhm Max
Q @ Freq:	14 @ 100MHz
Frequency - Self Resonant:	4GHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 150°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603 (1608 Metric)
Size / Dimension:	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max):	0.035" (0.90mm)
