ELL-ATV121M

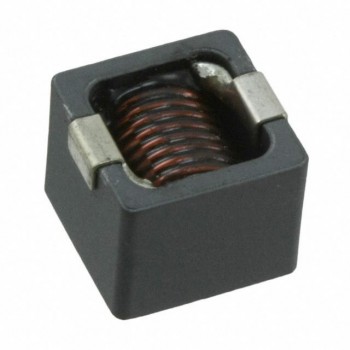

Image is for reference,
please contact us to get the real picture

Part No :: ELL-ATV121M

Manufacturer: Panasonic

Description: FIXED IND 120UH 840MA 190 MOHM

Catalog: Fixed Inductors

DataSheet: ELL-ATV121M PDF

Availability: 75 pieces

Unit Price: ~~$1.57000~~

Current price of ELL-ATV121M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ELL-ATV121M Specifications

Type	Description
Series:	V
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	120 µH
Tolerance:	±20%
Current Rating (Amps):	840 mA
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	190mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max):	0.177" (4.50mm)
