74455122

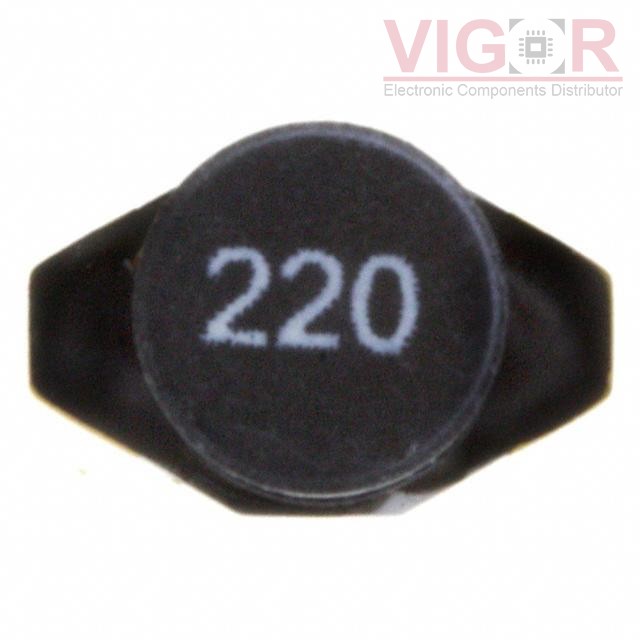

Image is for reference,
please contact us to get the real picture

Part No :: 74455122

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 22UH 800MA 370 MOHM

Catalog: Fixed Inductors

DataSheet: 74455122 PDF

Availability: 0 pieces

Unit Price: ~~$2.29000~~

Current price of 74455122 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

74455122 Specifications

Type	Description
Series:	WE-PD4
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	800 mA
Current - Saturation (Isat):	700mA
Shielding:	Unshielded
DC Resistance (DCR):	370mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	16MHz
Ratings:	-
Operating Temperature:	-40°C ~ 100°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max):	0.115" (2.92mm)
