HCTR-502

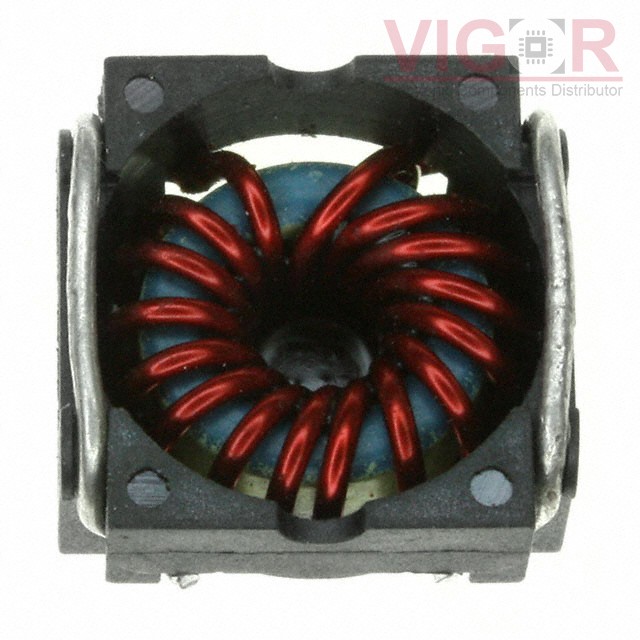

Image is for reference,
please contact us to get the real picture

Part No :: HCTR-502

Manufacturer: API Delevan

Description: FIXED IND 8.4UH 10.8A 8.3 MOHM

Catalog: Fixed Inductors

DataSheet: HCTR-502 PDF

Availability: 0 pieces

Unit Price: ~~$5.00360~~

Current price of HCTR-502 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HCTR-502 Specifications

Type	Description
Series:	HCTR
Package:	Bulk
Part Status:	Active
Type:	Toroidal
Material - Core:	Iron Powder
Inductance:	8.4 µH
Tolerance:	±25%
Current Rating (Amps):	10.8 A
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	8.3mOhm Max
Q @ Freq:	23 @ 100kHz
Frequency - Self Resonant:	45MHz
Ratings:	-
Operating Temperature:	-30°C ~ 130°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.740" L x 0.740" W (18.80mm x 18.80mm)
Height - Seated (Max):	0.400" (10.16mm)

Please confirm the specifications of the products when ordering.
