B82144B1224J000

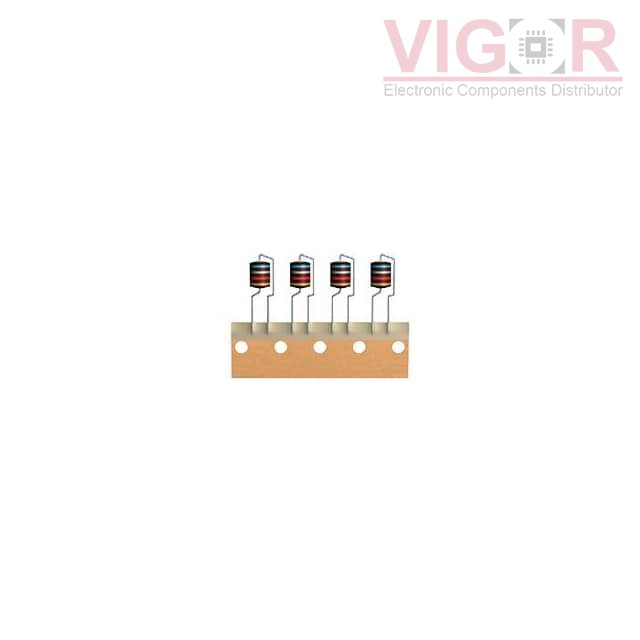

Image is for reference,
please contact us to get the real picture

Part No :: B82144B1224J000

Manufacturer: TDK EPCOS

Description: FIXED IND 220UH 550MA 1.3 OHM TH

Catalog: Fixed Inductors

DataSheet: B82144B1224J000 PDF

Availability: 0 pieces

Unit Price: ~~$0.25200~~

Current price of B82144B1224J000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82144B1224J000 Specifications

Type	Description
Series:	LBC
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	220 µH
Tolerance:	±5%
Current Rating (Amps):	550 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1.3Ohm Max
Q @ Freq:	40 @ 796kHz
Frequency - Self Resonant:	3.8MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical Cylinder
Supplier Device Package:	-
Size / Dimension:	0.256" Dia (6.50mm)
Height - Seated (Max):	0.571" (14.50mm)
