SDR1045-680M

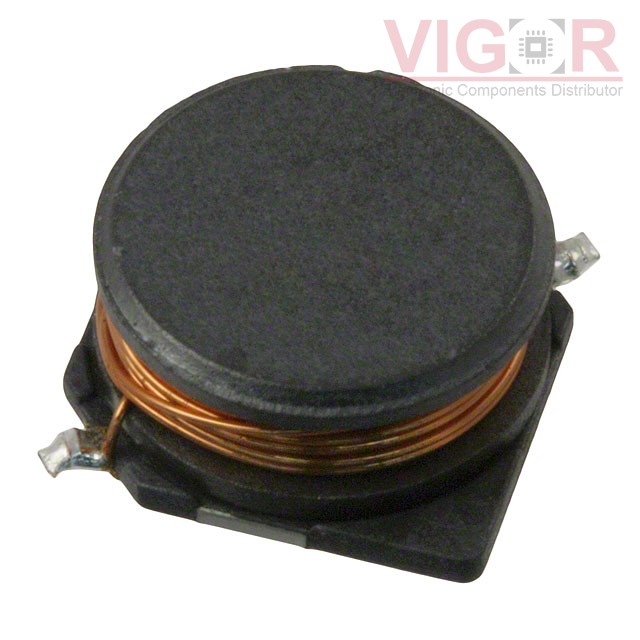

Image is for reference,
please contact us to get the real picture

Part No :: SDR1045-680M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 68UH 1.3A 360 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SDR1045-680M PDF

Availability: 0 pieces

Unit Price: ~~$0.45540~~

Current price of SDR1045-680M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SDR1045-680M Specifications

Type	Description
Series:	SDR1045
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	68 µH
Tolerance:	±20%
Current Rating (Amps):	1.3 A
Current - Saturation (Isat):	1.5A
Shielding:	Unshielded
DC Resistance (DCR):	360mOhm Max
Q @ Freq:	21 @ 2.52MHz
Frequency - Self Resonant:	11.1MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max):	0.189" (4.80mm)
