TYS80404R7N-10

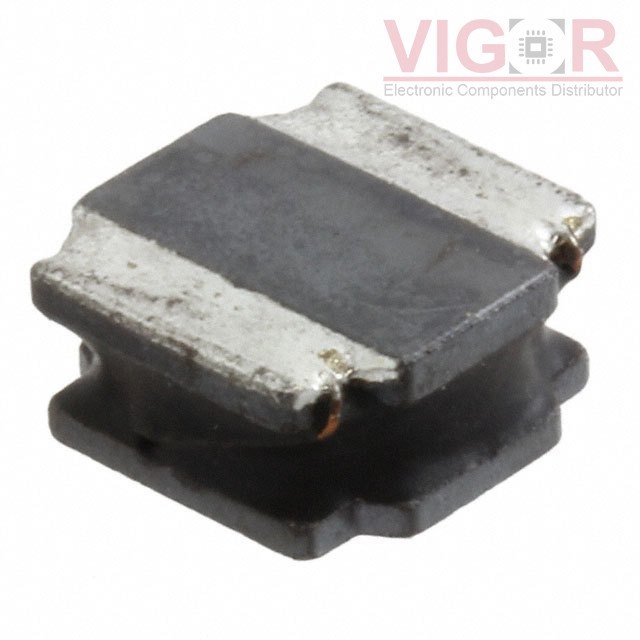

Image is for reference,
please contact us to get the real picture

Part No :: TYS80404R7N-10

Manufacturer: Laird - Performance Materials

Description: FIXED IND 4.7UH 4.1A 19 MOHM SMD

Catalog: Fixed Inductors

DataSheet: TYS80404R7N-10 PDF

Availability: 0 pieces

Unit Price: ~~$0.22786~~

Current price of TYS80404R7N-10 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TYS80404R7N-10 Specifications

Type	Description
Series:	TYS8040
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	-
Inductance:	4.7 µH
Tolerance:	±30%
Current Rating (Amps):	4.1 A
Current - Saturation (Isat):	5.9A
Shielding:	Shielded
DC Resistance (DCR):	19mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	24MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max):	0.165" (4.20mm)
