CDRH5D16NP-3R3NC

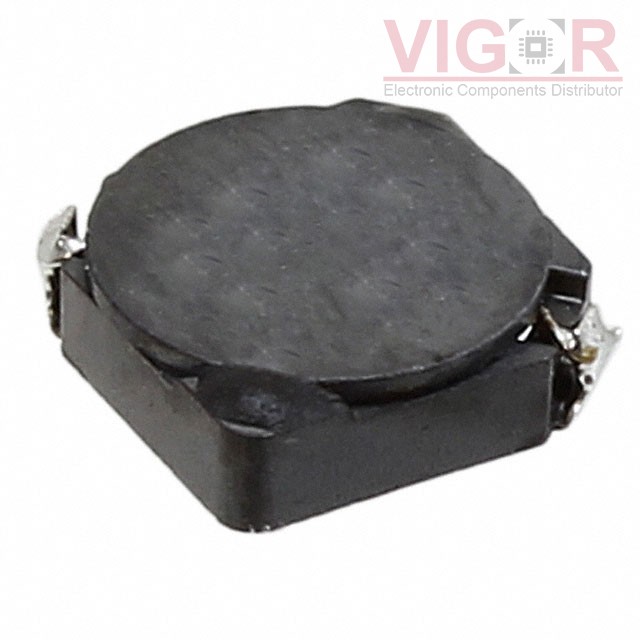

Image is for reference,
please contact us to get the real picture

Part No :: CDRH5D16NP-3R3NC

Manufacturer: Sumida Corporation

Description: FIXED IND 3.3UH 2.4A 44.5 MOHM

Catalog: Fixed Inductors

DataSheet: CDRH5D16NP-3R3NC PDF

Availability: 0 pieces

Unit Price: ~~$0.40800~~

Current price of CDRH5D16NP-3R3NC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CDRH5D16NP-3R3NC Specifications

Type	Description
Series:	CDRH5D16
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	3.3 µH
Tolerance:	±25%
Current Rating (Amps):	2.4 A
Current - Saturation (Isat):	2.6A
Shielding:	Shielded
DC Resistance (DCR):	44.5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.220" L x 0.220" W (5.60mm x 5.60mm)
Height - Seated (Max):	0.071" (1.80mm)

Please confirm the specifications of the products when ordering.
