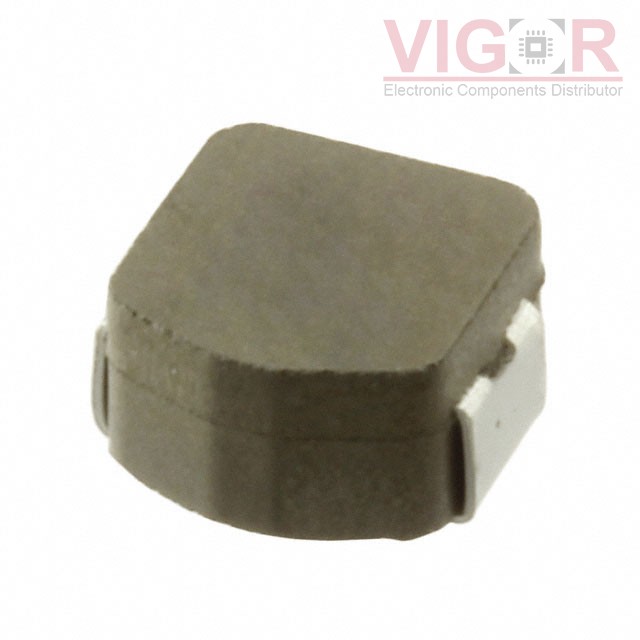

MPLCG0530LR22

Part No :: MPLCG0530LR22

Manufacturer: KEMET

Description: FIXED IND 220NH 14.1A 3.7 MOHM

Catalog: Fixed Inductors

DataSheet: MPLCG0530LR22 PDF

Availability: 3240 pieces

Current price of MPLCG0530LR22 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MPLCG0530LR22 Specifications

Type	Description
Series:	MPLCG
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Metal Composite
Inductance:	220 nH
Tolerance:	±20%
Current Rating (Amps):	14.1 A
Current - Saturation (Isat):	10.2A
Shielding:	Shielded
DC Resistance (DCR):	3.7mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-20°C ~ 120°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.217" L x 0.197" W (5.50mm x 5.00mm)
Height - Seated (Max):	0.118" (3.00mm)
