NLV32T-120J-PF

Part No :: NLV32T-120J-PF

Manufacturer: TDK Corporation

VIGOR # :: 1609543

Description: FIXED IND 12UH 140MA 2.5 OHM SMD

Catalog: Fixed Inductors

DataSheet: NLV32T-120J-PF PDF

Country of origin: Confirming

Date code: TBC

NLV32T-120J-PF Specifications

Type	Description
Series:	NLV-PF
Package:	Tape & Reel (TR)
Part Status:	Not For New Designs
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	12 µH
Tolerance:	±5%
Current Rating (Amps):	140 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	2.5Ohm Max
Q @ Freq:	30 @ 2.52MHz
Frequency - Self Resonant:	20MHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1210 (3225 Metric)
Supplier Device Package:	1210
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):	0.094" (2.40mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: Available on Request ?

Shipped from

HK warehouse

Expected Shipping Date

Awaiting confirmation

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.0970~~	~~$0.10~~

Current price of NLV32T-120J-PF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

L-14W72NKV4E

FIXED IND 72NH 400MA 490 MOHM

B82141A1184K000

FIXED IND 180UH 135MA 5.3 OHM TH

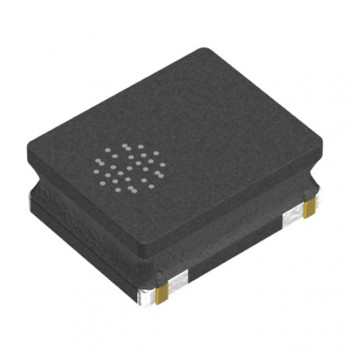

VLS252010HBX-1R0M-1
