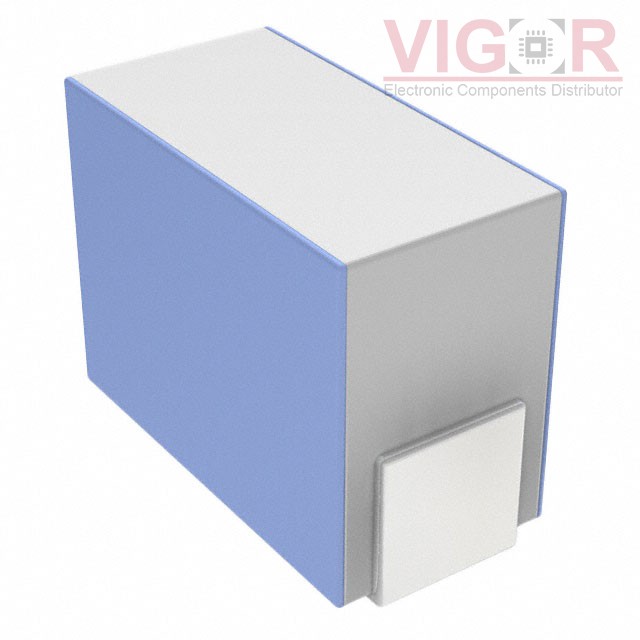

LQP02HQ20NH02E

Image is for reference,
please contact us to get the real picture

Part No :: LQP02HQ20NH02E

Manufacturer: TOKO / Murata

Description: FIXED IND 20NH 140MA 2.26 OHM

Catalog: Fixed Inductors

DataSheet: LQP02HQ20NH02E PDF

Availability: 0 pieces

Unit Price: ~~$0.06384~~

Current price of LQP02HQ20NH02E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LQP02HQ20NH02E Specifications

Type	Description
Series:	LQP02
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Thick Film
Material - Core:	Non-Magnetic
Inductance:	20 nH
Tolerance:	±3%
Current Rating (Amps):	140 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	2.26Ohm Max
Q @ Freq:	12 @ 500MHz
Frequency - Self Resonant:	3GHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	500 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	01005 (0402 Metric)
Supplier Device Package:	01005 (0402 Metric)
Size / Dimension:	0.016" L x 0.008" W (0.40mm x 0.20mm)
Height - Seated (Max):	0.013" (0.32mm)

Please confirm the specifications of the products when ordering.
