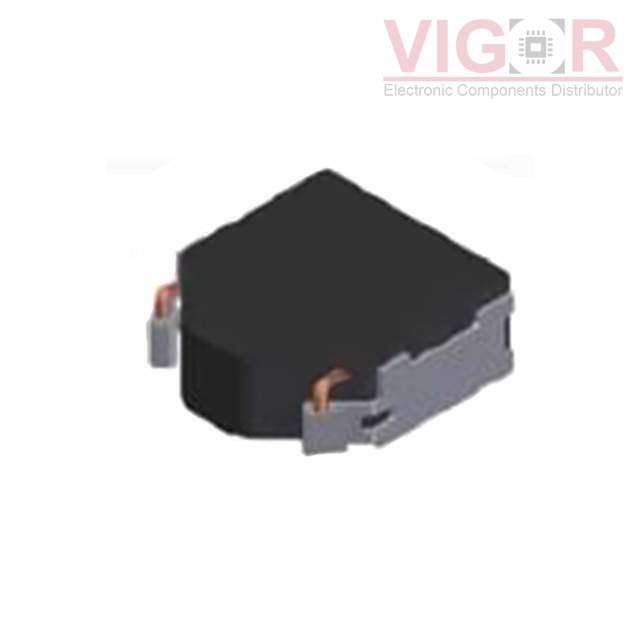

FDSD0630-H-R68M=P3

Part No :: FDSD0630-H-R68M=P3

Manufacturer: TOKO / Murata

Description: FIXED IND 680NH 9.61A 8.6 MOHM

Catalog: Fixed Inductors

DataSheet: FDSD0630-H-R68M=P3 PDF

Availability: 184 pieces

Unit Price: ~~$0.95000~~

Current price of FDSD0630-H-R68M=P3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDSD0630-H-R68M=P3 Specifications

Type	Description
Series:	FDSD0630
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Metal
Inductance:	680 nH
Tolerance:	±20%
Current Rating (Amps):	9.61 A
Current - Saturation (Isat):	17A
Shielding:	Shielded
DC Resistance (DCR):	8.6mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-20°C ~ 100°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.276" L x 0.260" W (7.00mm x 6.60mm)
Height - Seated (Max):	0.118" (3.00mm)
