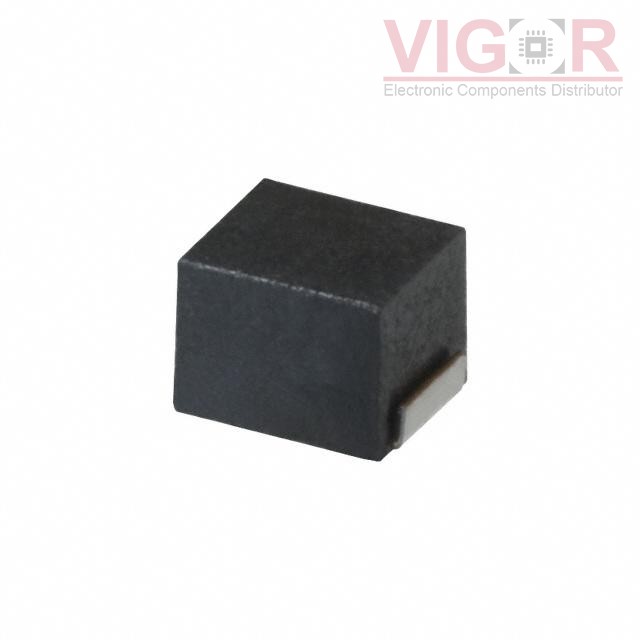

NLHV25T-R33J-PF

Part No :: NLHV25T-R33J-PF

Manufacturer: TDK Corporation

Description: FIXED IND 330NH 400MA 680 MOHM

Catalog: Fixed Inductors

DataSheet: NLHV25T-R33J-PF PDF

Availability: 24 pieces

Current price of NLHV25T-R33J-PF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NLHV25T-R33J-PF Specifications

Type	Description
Series:	NLHV
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	-
Inductance:	330 nH
Tolerance:	±5%
Current Rating (Amps):	400 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	680mOhm Max
Q @ Freq:	40 @ 25.2MHz
Frequency - Self Resonant:	400MHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	25.2 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):	0.071" (1.80mm)
