ETQ-P3M220KVN

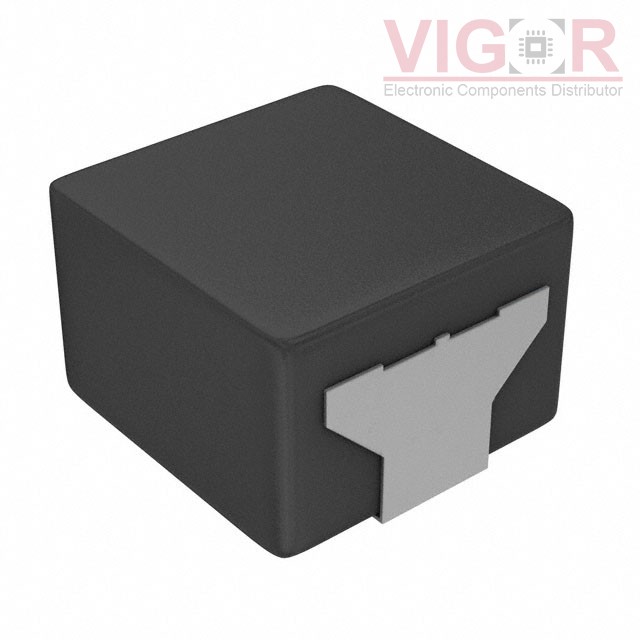

Image is for reference,
please contact us to get the real picture

Part No :: ETQ-P3M220KVN

Manufacturer: Panasonic

Description: FIXED IND 22UH 2.7A 140.8 MOHM

Catalog: Fixed Inductors

DataSheet: ETQ-P3M220KVN PDF

Availability: 0 pieces

Unit Price: ~~$1.06000~~

Current price of ETQ-P3M220KVN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ETQ-P3M220KVN Specifications

Type	Description
Series:	PCC-M0630M-LP
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Metal Composite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	2.7 A
Current - Saturation (Isat):	4.3A
Shielding:	Shielded
DC Resistance (DCR):	140.8mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	2-SMD, J-Lead
Supplier Device Package:	-
Size / Dimension:	0.252" L x 0.236" W (6.40mm x 6.00mm)
Height - Seated (Max):	0.118" (3.00mm)
