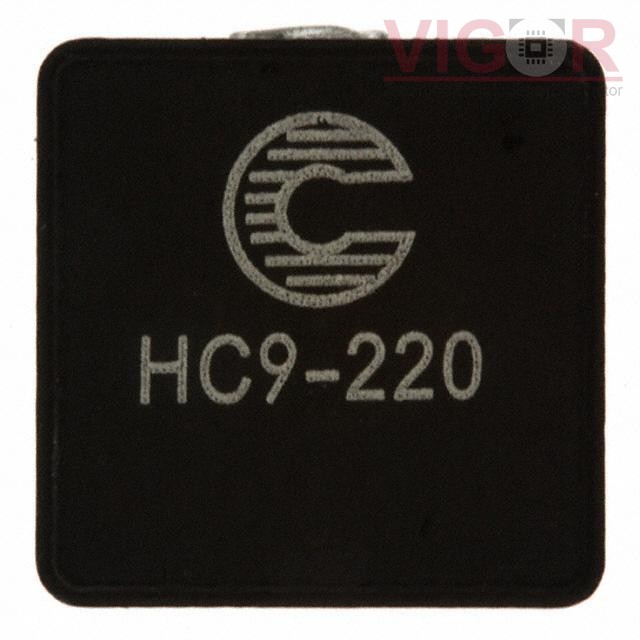

HC9-220-R

Part No :: HC9-220-R

Manufacturer: PowerStor (Eaton)

Description: FIXED IND 22UH 6.3A 25.7 MOHM

Catalog: Fixed Inductors

DataSheet: HC9-220-R PDF

Availability: 11743 pieces

Current price of HC9-220-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HC9-220-R Specifications

Type	Description
Series:	HC9
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Iron Powder
Inductance:	22 µH
Tolerance:	±15%
Current Rating (Amps):	6.3 A
Current - Saturation (Isat):	8.7A
Shielding:	Unshielded
DC Resistance (DCR):	25.7mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.555" L x 0.516" W (14.10mm x 13.10mm)
Height - Seated (Max):	0.295" (7.50mm)
