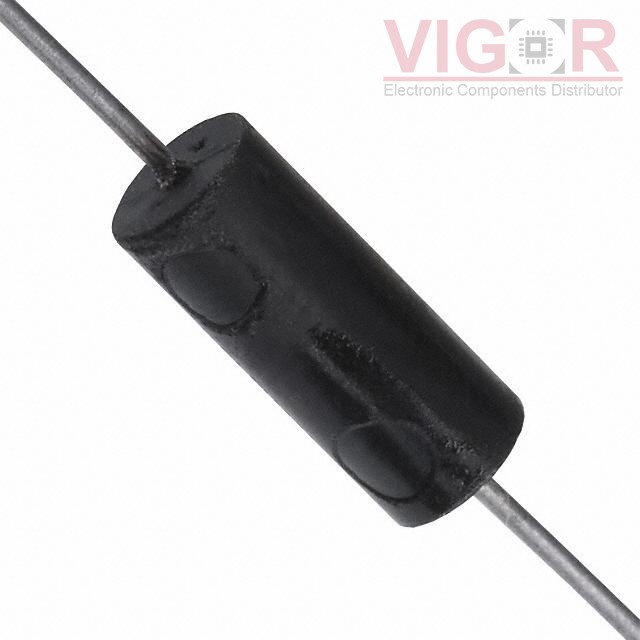

1641-223K

Part No :: 1641-223K

Manufacturer: API Delevan

VIGOR # :: 1613064

Description: FIXED IND 22UH 295MA 960 MOHM TH

Catalog: Fixed Inductors

DataSheet: 1641-223K PDF

Country of origin: -

Date code: -

1641-223K Specifications

Type	Description
Series:	Military, MIL-PRF-M15305, MS75089
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	-
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±10%
Current Rating (Amps):	295 mA
Current - Saturation (Isat):	220mA
Shielding:	Shielded
DC Resistance (DCR):	960mOhm Max
Q @ Freq:	45 @ 2.5MHz
Frequency - Self Resonant:	41MHz
Ratings:	-
Operating Temperature:	-55°C ~ 105°C
Inductance Frequency - Test:	2.5 MHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max):	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1664

Shipped from

HK warehouse

Expected Shipping Date

May 20 - May 24 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$5.0100~~	~~$5.01~~
1000	~~USD 0,67~~	~~$673.60~~
3000	~~$0.6526~~	~~$1 957.65~~
5000	~~$0.6315~~	~~$3 157.50~~
10000	~~$0.6104~~	~~$6 104.50~~

Current price of 1641-223K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
