SDR6603-820M

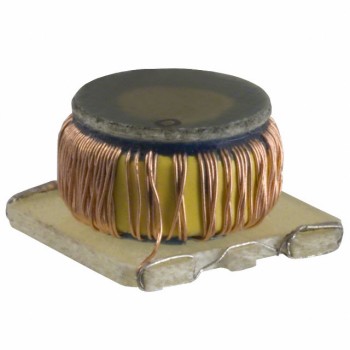

Image is for reference,
please contact us to get the real picture

Part No :: SDR6603-820M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 82UH 350MA 1.18OHM SMD

Catalog: Fixed Inductors

DataSheet: SDR6603-820M PDF

Availability: 0 pieces

Unit Price: ~~$0.51480~~

Current price of SDR6603-820M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SDR6603-820M Specifications

Type	Description
Series:	SDR6603
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	82 µH
Tolerance:	±20%
Current Rating (Amps):	350 mA
Current - Saturation (Isat):	350mA
Shielding:	Unshielded
DC Resistance (DCR):	1.18Ohm Max
Q @ Freq:	10 @ 2.52MHz
Frequency - Self Resonant:	10MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max):	0.115" (2.92mm)
