B82462A4223K000

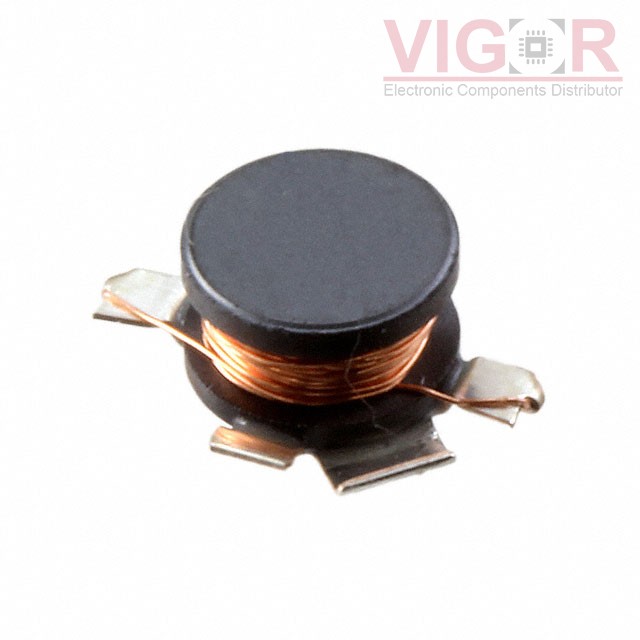

Image is for reference,
please contact us to get the real picture

Part No :: B82462A4223K000

Manufacturer: TDK EPCOS

Description: FIXED IND 22UH 800MA 260 MOHM

Catalog: Fixed Inductors

DataSheet: B82462A4223K000 PDF

Availability: 2498 pieces

Unit Price: ~~$1.47000~~

Current price of B82462A4223K000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82462A4223K000 Specifications

Type	Description
Series:	B82462-A4
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±10%
Current Rating (Amps):	800 mA
Current - Saturation (Isat):	1.28A
Shielding:	Unshielded
DC Resistance (DCR):	260mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	21MHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max):	0.118" (3.00mm)
