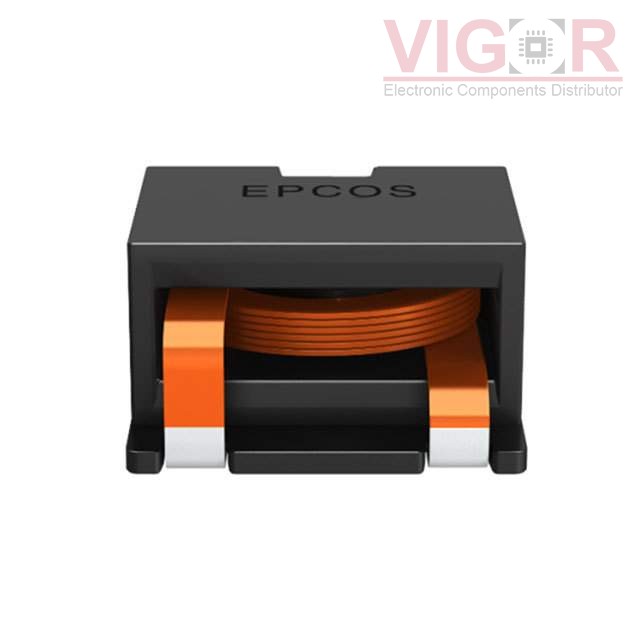

B82559A6682A016

Part No :: B82559A6682A016

Manufacturer: TDK EPCOS

Description: FIXED IND 6.8UH 13.5A 6.8 MOHM

Catalog: Fixed Inductors

DataSheet: B82559A6682A016 PDF

Availability: 139 pieces

Unit Price: ~~$3.67000~~

Current price of B82559A6682A016 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82559A6682A016 Specifications

Type	Description
Series:	ERU16 - Flat Wire Inductor
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	6.8 µH
Tolerance:	±10%
Current Rating (Amps):	13.5 A
Current - Saturation (Isat):	15.5A
Shielding:	Shielded
DC Resistance (DCR):	6.8mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard, 3 Lead
Supplier Device Package:	-
Size / Dimension:	0.736" L x 0.681" W (18.70mm x 17.30mm)
Height - Seated (Max):	0.343" (8.70mm)
